Ultra Bright SMD 2835 LED Chip , Plcc 2 Smd Led 99.9 % Gold Wires Fit Led Car Light

Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH2835IB02
Minimum Order Quantity: 12K
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description

Type:smd ledChip Material:InGaN
Emitting Color:Ice BlueLuminous Intensity:Customers' Requirements
Luminous Flux(lm):IB:18-20LMPower:0.2Watt
Viewing Angle(°):120 DegreeColor Rendering Index:Null
Color Temperature:IB:100000KOperating Temperature:-20 - 85°C
Chip Brand:Epistar Chip , Sanan Chip , Epileds ChipCurrent:60mA
Voltage:IB:3.0-3.4VWarranty:2 Years

Ultra bright plcc 2 0.2w 99.9% Gold Wires smd 2835 led Chip Diode Ice Blue for led car light


  • Features:
    1. Package in 8mm tape on 7″ diameter reel.
    2. Compatible with automatic placement equipment.
    3. Compatible with infrared and vapor phase reflow solder process.

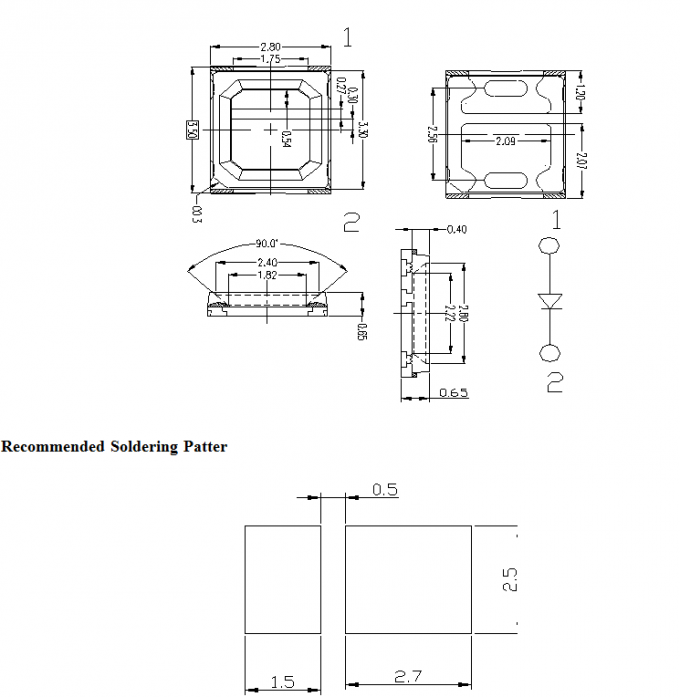

    4. 2.8mm×3.50mm SMT LED, 0.65mm thickness.
    5. Low power consumption.
    6. Color: Ice blue
    7. Bi-color type.
    8. The product itself will remain within RoHS compliant Version.

    1. The PCB 2835 SMD Taping is much smaller than lead frame type components, thus enable smaller higher packing density, reduced storage space and finally smaller equipment to be obtained.
    2. Besides, light Weight makes them ideal for miniature applications, etc.

    1. Automotive: Decorative lights
    2. Telecommunication: Indicator and backlighting in telephone and fax.
    3. Flat backlight for LCD, switch and symbol.



    Product NameSMD 2835 LEDViewing Angle120°
    Model No.YH2835IB02Power0.2W
    Chip BrandSananChip Size2.8*3.5*0.65mm
    ColorIce bluePackaging4000pcs/reel
    Lifespan50,000 HoursWaranty2 Years

    1. Low power consumption

    2. Long life-solid state reliability

    3. Available on tape and reel

    4. ROHS compliant

    5. Wide Viewing Angle


  • Ultra Bright SMD 2835 LED Chip , Plcc 2 Smd Led 99.9 % Gold Wires Fit Led Car Light
