High Lumens 2835 Smd Led 0.5 W Pink Color Specifications Full Spectrum Epistar Chip

Detailed Product Description

Plant grow high lumens 2835 smd led 0.5 watt pink color specifications full spectrum epistar chip

Features:

The LED are available with different color

Utilizing advanved technology

High brightness,long life

Advantages:

High-intensity

uniform illumination

,Energy-saving and environmental protection

Low-power consumption

Well consistency

Bins sorting

Full-inspection before dispatch

CE & RoHS Certification

AProduct Description

Product Details

Amber color 2835 hot products 16-18lm 0.2W smd led chip

1.High Lumens Output & Low Brightness Decay

2.Stable Performance & Great CCT Inity.
3.Wid Color Temperature Range
4.High CRI More Than 95 available
5.good raw materials
6.Taiwan Epistar, San'an chips

Product Material

Plant grow high lumens 2835 smd led 0.5 watt pink color specifications full spectrum epistar chip

1. 99.9% gold wire

2. Taiwan red copper holder good cooling

3. high brightness Sanan Epistar led chip

Original factory formal chip more stable

4. High refractive index silicone

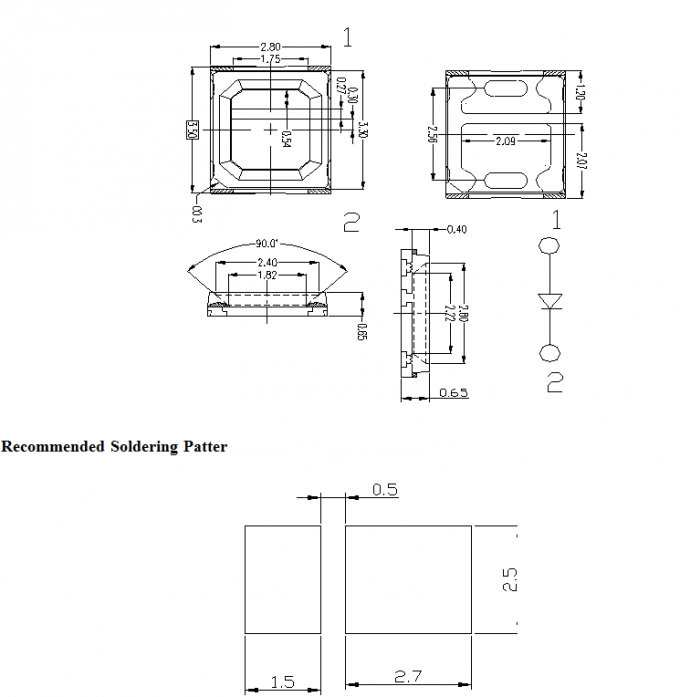

Reel Dimensions

Carrier Tape Dimensions: Loaded quantity 4000 PCS Per reel.

Please read the following notes before using the product:

1. Over-current-proof

Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change (Burn out will happen).

2. Storage

2.1 Do not open moisture proof bag before the products are ready to use.

2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less.

2.3 The LEDs should be used within a year.

2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less.

2.5 The LEDs should be used within 168 hours (7 days) after opening the package.

2.6 If the moisture adsorbent material (silica gel) has fabled away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment: 60±5℃ for 24 hours.

3. Soldering Condition

3.1 Pb-free solder temperature profile.

3.2 Reflow soldering should not be done more than two times.

3.3 When soldering, do not put stress on the LEDs during heating.

3.4 After soldering, do not warp the circuit board.

4. Soldering Iron

Each terminal is to go to the tip of soldering iron temperature less than 260℃ for 5 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.

5. Repairing

Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.

6. Caution in ESD

Static Electricity and surge damages the LED. It is recommended to use a wrist band or anti-electrostatic glove when handling the LED. All devices, equipment and machinery must be properly grounded.
