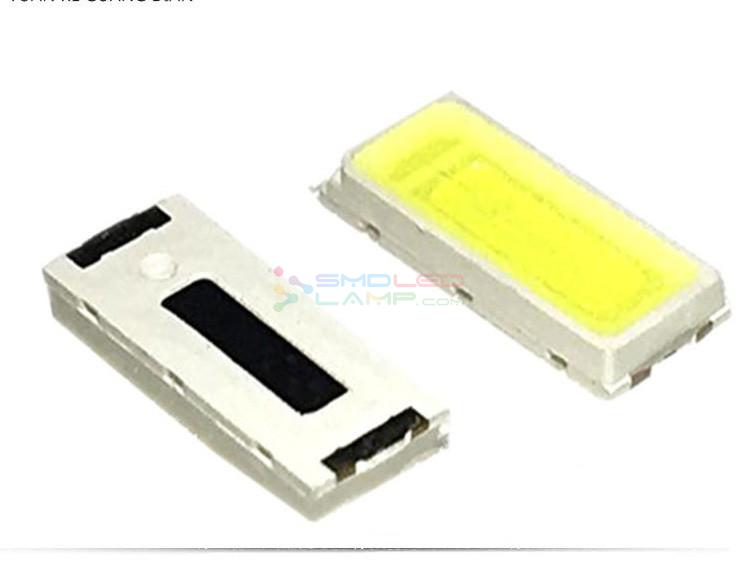

6 V / 150 MA SMD 7030 LED , Smd Led 7030 110 - 120 LM Luminous Flux

6 V / 150 MA SMD 7030 LED , Smd Led 7030 110 - 120 LM Luminous Flux

Product Details:
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH7030CW
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description

Type:	smd led	Chip Material:	InGaN
Emitting Color:	Cool White	Luminous Intensity:	Customers' Requirements
Luminous Flux(lm):	110-120LM	Power:	1W
Viewing Angle(°):	120 Degree	Color Rendering Index:	80
Color Temperature:	8000-10000K	Operating Temperature:	-20 - 85
Chip Brand:	Epistar Chip, Sanan Chip,Epileds Chip	Current:	150mA
Voltage:	6-7V	Warranty:	2 Years
Lifespan:	50000-100000H

7030 smd led datasheet, 3V/350mA, 6V/150mA 1W 7030 smd led chip

Type	Color	CT	View Angle	IV	VF	IF
7030 SMD LED	WARM WHITE	3000K	120	55 LM	3.0/6.2V	350/150mA
7030 SMD LED	NETURAL WHITE	4500K	120	55 LM	3.0/6.2V	350/150mA
7030 SMD LED	PURE WHITE	6000k	120	55 LM	3.0/6.2V	350/150mA
7030 SMD LED	COLD WHITE	10000K	120	55 LM	3.0/6.2V	350/150mA

Application

LED Lighting industry(Tube, Panel Light, Ceiling Light, Bulb light etc).

Landscape lighting(LED Strip, Wall washer lamp, Garden light etc).

Plant grow Lamp.

Sterilization and Disinfection.

Money detector.

General use

6 V / 150 MA SMD 7030 LED , Smd Led 7030 110 - 120 LM Luminous Flux

SURFACE MOUNT LED LAMPS
Product Type:YHW7020-1W-6V
Absolute maximum ratings (Ta=25°C)
Parameter			Symbol			Value			Unit
Forward current			If			150			mA
Reverse voltage			Vr			--			V
Power dissipation			Pd			945			mW
Operating temperature range			Top			-25~+80			°C
Storage temperature range			Tstg			-30~+85			°C
Peak pulsing current(1/8 duty f=1KHz)			Ifp			195			mA
Junction Temperature			Tj			115			℃/W
Electrostatic Discharge(HBM)			ESD			1000			V
Electro-Optical characteristics (TA=25°C)
Parameter	Test Condition	Symbol		Color	Value					Unit
					Min		Typ	Max
Color Temperature	IF=150mA	CCT		W	8000		--	10000		K
Forward voltage	IF=150mA	Vf		W	6.0		--	6.5		V
luminous flux	IF=150mA	φ		W	110		--	120		LM
Viewing angle at 50% IV	IF=150mA	2θ1/2		W	--		120	--		Deg
Dominant wavelength	IF=150mA	λd		--	--		--	--		nm
Reverse current	Vr=5V	Ir		--	--		--	--		μA
Color Rendering Index	IF=150mA	CRI		W	--		80	--		Ra
