0.5w SMD 7030 LED 3.0 - 3.4 V 120 Degree Viewing Angle 2 Years Warranty

Product Details:
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH7030W05
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description

Type:	smd led	Chip Material:	InGaN
Emitting Color:	White	Luminous Intensity:	Customers' Requirements
Luminous Flux(lm):	55-60LM	Power:	0.5W
Viewing Angle(°):	120 Degree	Color Rendering Index:	80
Color Temperature:	6000-6500K	Operating Temperature:	-20 - 85
Chip Brand:	Epistar Chip, Sanan Chip,Epileds Chip	Current:	150mA
Voltage:	3.0-3.4V	Warranty:	2 Years
Lifespan:	50000-100000H

SMD 7030 LED 0.5w white 6000-6500K 150mA 55-60LM specifications for LCD light

Type	Color	CT	View Angle	IV	VF	IF
7030 SMD LED	WARM WHITE	3000K	120	55 LM	3.0/6.2V	350/150mA
7030 SMD LED	NETURAL WHITE	4500K	120	55 LM	3.0/6.2V	350/150mA
7030 SMD LED	PURE WHITE	6000k	120	55 LM	3.0/6.2V	350/150mA
7030 SMD LED	COLD WHITE	10000K	120	55 LM	3.0/6.2V	350/150mA

Features:

P-LCC-2 package.
White package.
Optical indicator.
Colorless clear window.
Ideal for backlight and light pipe application.
Inter reflector.
Wide viewing angle.
Suitable for automatic placement equipment.
Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.

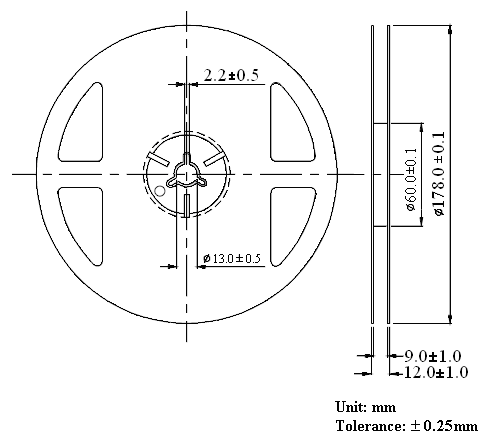

Available on tape and reel (8mm Tape).
The product itself will remain within RoHS compliant Version.

Descriptions:

The TOP 7030 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.

Applications:

Automotive: Backlighting in dashboards and switches.
Telecommunication: Indicator and backlight in telephone and fax
Indicator and backlight for audio and video equipment.
Indicator and backlight in office and family equipment.
Flat backlight for LCD’s, switches and symbols.
Light pipe application.
General use.

Product Description

0.5w SMD 7030 LED 3.0 - 3.4 V 120 Degree Viewing Angle 2 Years Warranty

SURFACE MOUNT LED LAMPS
Product Type:YH7020W05
Absolute maximum ratings (Ta=25°C)
Parameter			Symbol			Value			Unit
Forward current			If			150			mA
Reverse voltage			Vr			--			V
Power dissipation			Pd			460			mW
Operating temperature range			Top			-25~+80			°C
Storage temperature range			Tstg			-30~+85			°C
Peak pulsing current(1/8 duty f=1KHz)			Ifp			200			mA
Junction Temperature			Tj			115			℃/W
Electrostatic Discharge(HBM)			ESD			1000			V
Electro-Optical characteristics (TA=25°C)
Parameter	Test Condition	Symbol		Color	Value					Unit
					Min		Typ	Max
Color Temperature	IF=150mA	CCT		W	6000		--	6500		K
Forward voltage	IF=150mA	Vf		W	3.0		--	3.4		V
luminous flux	IF=150mA	φ		W	55		--	60		LM
Viewing angle at 50% IV	IF=150mA	2θ1/2		W	--		120	--		Deg
Dominant wavelength	IF=150mA	λd		--	--		--	--		nm
Reverse current	Vr=5V	Ir		--	--		--	--		μA
Color Rendering Index	IF=150mA	CRI		W	--		80	--		Ra
