Yellow Orange 3014 SMD LED 585nm / 590nm / 595nm For Led Car Turn Signal

Product Details:
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH3014Y
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description

Type:	smd led	Chip Material:	InGaN
Emitting Color:	Yellow	Luminous Intensity:	Customers' Requirements
Luminous Flux(lm):	600-800mcd	Power:	0.1 Watts
Viewing Angle(°):	120 Degree	Color Rendering Index:	Null
Color Temperature:	590-592nm	Operating Temperature:	-20 - 85
Chip Brand:	Epistar Chip, Sanan Chip,Epileds Chip	Current:	30mA
Voltage:	2.0-2.4V	Warranty:	2 Years
Lifespan:	50000-100000H

3014 smd led 0.1w Yellow orange 585nm 590nm 595nm high brightness Copper bracket for Led car turn signal

Product Description

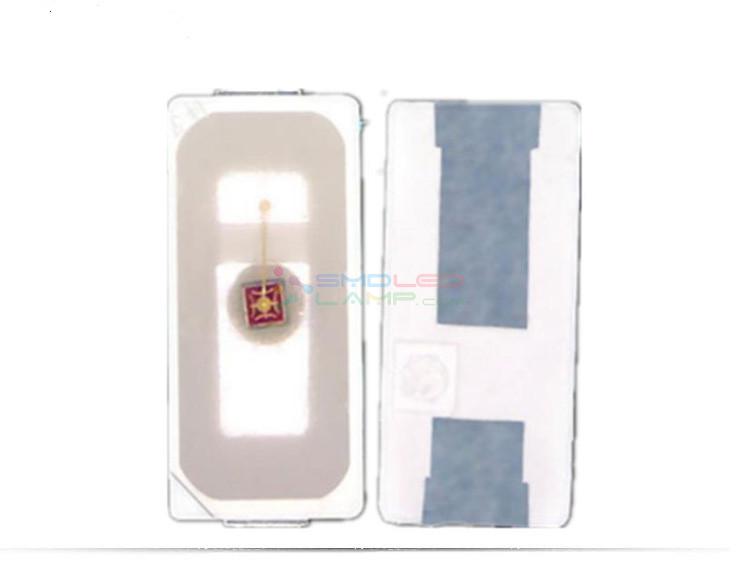

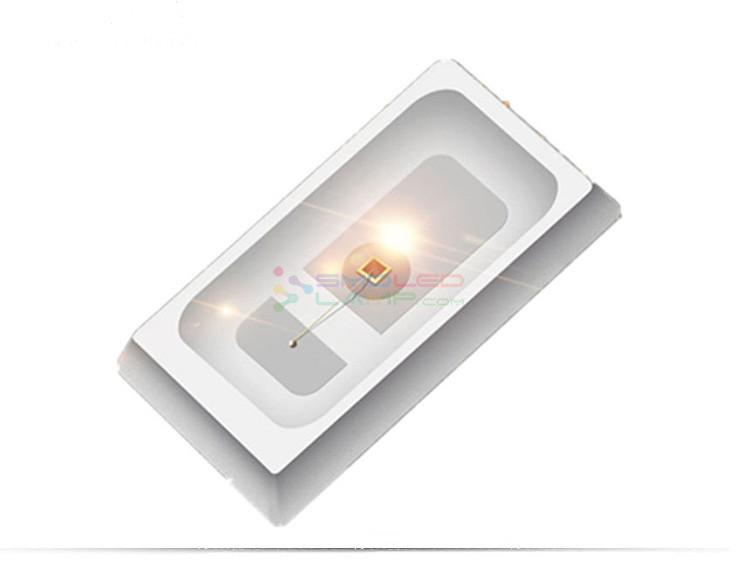

Yellow Orange 3014 SMD LED 585nm / 590nm / 595nm For Led Car Turn Signal

Product features:

1.High Lumens Output & Low Brightness Decay
2.Stable Performance & Great CCT Inity.
3.Wid Color Temperature Range

Product quality:

1. First-Choice for Indoor Ligting
2. Good raw materials
3. Copper layer
4. 99.99% Gold wire connection

5.San'an epistar chips
6. Lifespan is >50 000 hours easily

SURFACE MOUNT LED LAMPS
Product Type:YH3014Y
Absolute maximum ratings (Ta=25°C)
Parameter			Symbol			Value			Unit
Forward current			If			30			mA
Reverse voltage			Vr			5			V
Power dissipation			Pd			100			MW
Operating temperature range			Top			-25~+80			°C
Storage temperature range			Tstg			-30~+85			°C
Peak pulsing current(1/8 duty f=1KHz)			Ifp			50			mA
Junction Temperature			Tj			115			℃/W
Electrostatic Discharge(HBM)			ESD			1000			V
Electro-Optical characteristics (TA=25°C)
Parameter	Test Condition	Symbol		Color	Value					Unit
					Min		Typ	Max
Color Temperature	IF=30mA	CCT		Y	--		--	--		K
Forward voltage	IF=30mA	Vf		Y	2.0		--	2.4		V
luminous flux	IF=30mA	φ		Y	600		--	800		MCD
Viewing angle at 50% IV	IF=30mA	2θ1/2		Y	--		120	--		Deg
Dominant wavelength	IF=30mA	λd		--	590		--	595		nm
Reverse current	Vr=5V	Ir		Y	--		5	--		μA
Color Rendering Index	IF=30mA	CRI		--	--		--	--		Ra

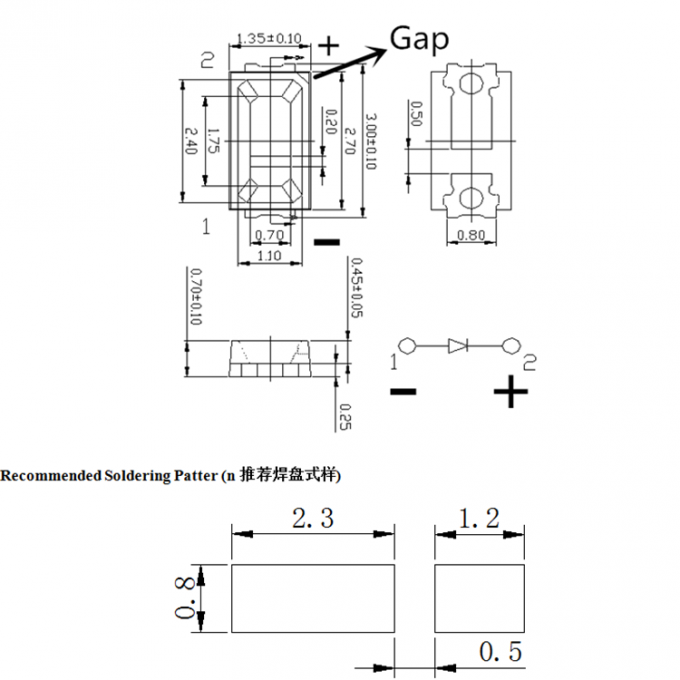

Reel Dimensions:

Carrier Tape Dimensions:

Loaded quantity 4000 PCS Per reel.

Yellow Orange 3014 SMD LED 585nm / 590nm / 595nm For Led Car Turn Signal

Application field

Are widely used in the LED lamp, LED bulb light, LED panel light, LED ceiling lamp, LED street light, LED lamp, miner's lamp, stage light, flashlight, lighting, lamp lighting lamps and lanterns, as well as outdoor billboards, such as electronic display, traffic lights, signs, car tail lights, LED modules, LCD back light, LED lighting lighting, LED soft/hard light bar, etc., is the better choice to replace traditional lighting light source.
