LED Matrix And Strip Smart Embedded Led Chip IC Inside Full Color

Product Details:
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YHSK6812RGBWW
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description

Type:	smd led	Chip Material:	InGaN
Emitting Color:	RGBWW	Luminous Intensity:	Customers' Requirements
Luminous Flux(lm):	High Brightness	Power:	0.2W
Viewing Angle(°):	120 Degree	Color Rendering Index:	80
Color Temperature:	RGB+2800-3200K	Operating Temperature:	-20 - 85
Chip Brand:	Epistar Chip, Sanan Chip,Epileds Chip	Current:	12mA
Voltage:	DC 5V	Warranty:	2 Years
Lifespan:	50000-100000H

Full Color Smart Embedded With IC inside 4 in 1 SK6812 5050 RGBW SMD LED Chip for LED Matrix and Strip

Product Description

1. SK6812 RGBW RGBWW RGBCW Intelligent LED is 4 channels R,G,B,W inside in smd5050 LED for excellent lighting effects.

2. SK6812 RGBW RGBWW RGBCW LED, one half is the RGB, the other half is a white LED with a yellow starburst.

3. It controlled with 8-bit PWM per channel (8 x 4 channels = 32-bit color overall). Great for adding lots of colorful + warm white ( neutral white or cool white ) to your project.

4. Each SK6812RGBWW LED acts like a shift register, reading incoming data on the input pins, and then shifting the previous data out on the output pin

5. The PWM is built into each LED-chip so once you set the brightness you can stop talking to the strip and it will continue to PWM all the LEDs

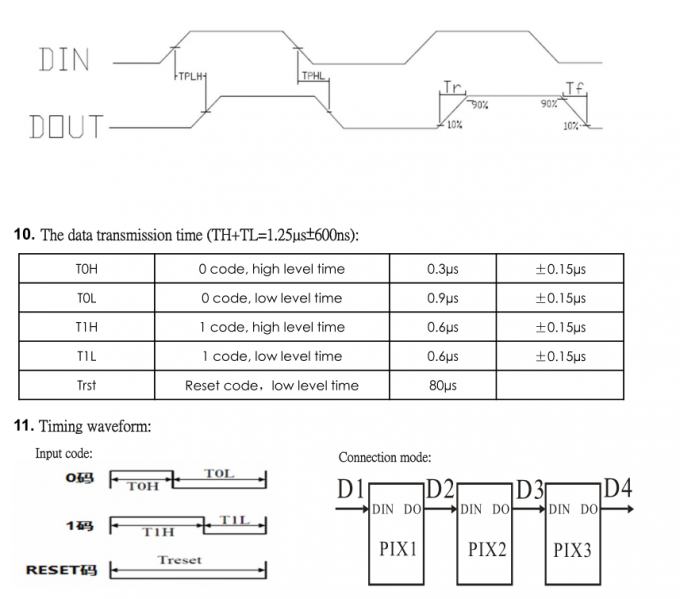

6. This RGBW LED use a specialized single data line control interfact and requires strict timing-specific protocol.

7. LEDs use 800 KHz protocol that faster than sk6812 leds 400 HZ.

Products Information

LED Matrix And Strip Smart Embedded Led Chip IC Inside Full Color

Product Name	YHSK6812RGBW	Viewing Angle	120°
Model No.	YHSK6812RGBW	Power	0.26W
Voltage	3.7-5.5V	Current	12mA
Chip Brand	Sanan	Chip Size	5.05.01.6mm
CCT	R:620-630nm G:515-525nm B:460-470nm W:2800-3200k	Lumens	R:700-1000mcd G:1500-2000mcd B:700-1000mcd W:7-8lm
Color	RGBWW	Packaging	1000pcs/reel
Lifespan	50,000 Hours	Waranty	2 Years
1. Low power consumption 2. Long life-solid state reliability 3. Available on tape and reel 4. ROHS compliant 5. Wide Viewing Angle

SURFACE MOUNT LED LAMPS
Product Type:YHSK6812RGBW
Absolute maximum ratings (Ta=25°C)
Parameter			Symbol			Value			Unit
Forward current			If			12			mA
Reverse voltage			Vr			5			V
Power dissipation			Pd			0.24			W
Operating temperature range			Top			-25~+80			°C
Storage temperature range			Tstg			-30~+85			°C
Peak pulsing current(1/8 duty f=1KHz)			Ifp			120			mA
Junction Temperature			Tj			115			℃/W
Electrostatic Discharge(HBM)			ESD			1000			V
Electro-Optical characteristics (TA=25°C)
Parameter	Test Condition	Symbol		Color	Value					Unit
					Min		Typ	Max
Color Temperature	I_F=12mA	CCT		WW	2800		--	3200		K
Forward voltage	I_F=12mA	Vf		R G B WW	--		5	--		V
luminous flux	I_F=12mA	φ		R G B WW	600 1500 300 8		--	800 2000 500 10		MCD LM
Viewing angle at 50% IV	I_F=12mA	2θ1/2		R G B WW	--		120	--		Deg
Dominant wavelength	I_F=12mA	λd		R G B	620 520 460		--	625 525 465		nm
Reverse current	Vr=5V	Ir		R G B WW	--		5	--		μA
Color Rendering Index	I_F=12mA	CRI		--	--		--	--		Ra
