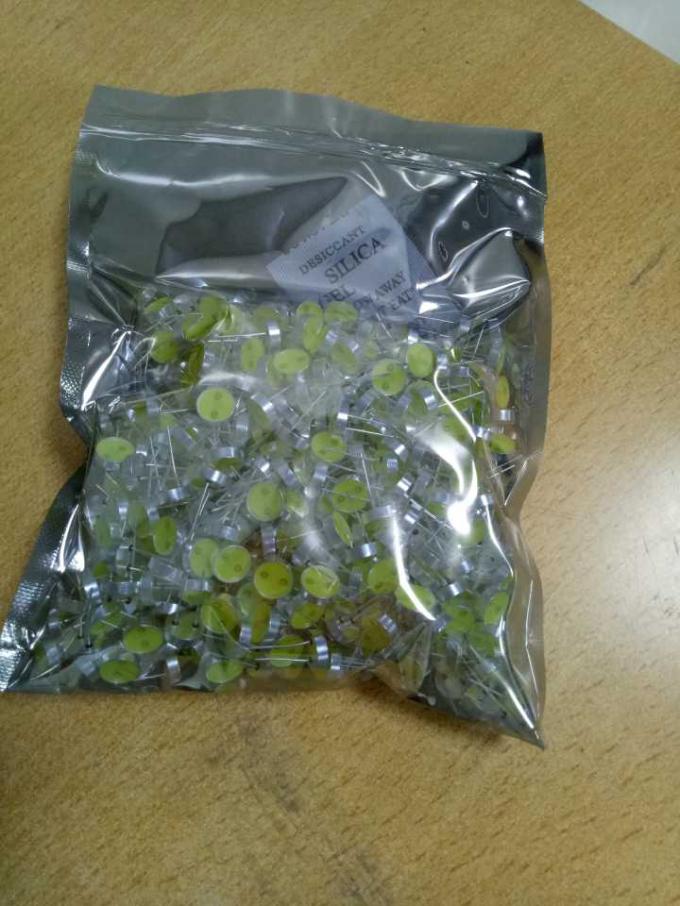

Yellow LED Light Emitting Diode Chip 300 MA Current For Car Turn Signal

Product Details:
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YHT8.4MMY1
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description

Type:	smd led	Chip Material:	InGaN
Emitting Color:	Yellow	Luminous Intensity:	Customers' Requirements
Luminous Flux(lm):	20-30LM	Power:	1W
Viewing Angle(°):	120 Degree	Color Rendering Index:	Null
Color Temperature:	590-595nm	Operating Temperature:	-20 - 85
Chip Brand:	Epistar Chip, Sanan Chip,Epileds Chip	Current:	300mA
Voltage:	2.0-2.4V	Warranty:	2 Years
Lifespan:	50000-100000H

T10 F8.4MM Yellow 1w 300mA current 590-595nm amber for Car turn signal

Features:

High luminous intensity output.
Oval shape.
Well defined spatial radiation.
Wide viewing angle (2θ_1/2): 50^o/100^o.
Reliable and robust.
The product itself will remain within RoHS complaint Version.

Descriptions:

This precision optical performance oval LED is specially designed for passenger information signs.
The LED lamps are available with different colors, intensities.
Superior performance in outdoor environment.

Applications:

Single or dual color graphic signs.
Message boards.
Variable message signs (VMS).
Commercial outdoor advertising

Product Description

Yellow LED Light Emitting Diode Chip 300 MA Current For Car Turn Signal

Product features:

1.High Power 1W White 6V car light
2.High Lumens Output & Low Brightness Decay
3.Stable Performance & Great CCT Inity.
4.Wid Color Temperature Range
5.High CRI More Than 70

Product quality:

1. First-Choice for Indoor Ligting
2.good raw materials
3. Copper layer
4. Gold wire connection

5.San'an chips
6. Lifespan is >50 000 hours easily

SURFACE MOUNT LED LAMPS
Product Type:YHT10F8.4MMY1
Absolute maximum ratings (Ta=25°C)
Parameter			Symbol			Value			Unit
Forward current			If			300			mA
Reverse voltage			Vr			5			V
Power dissipation			Pd			990			MW
Operating temperature range			Top			-25~+80			°C
Storage temperature range			Tstg			-30~+85			°C
Peak pulsing current(1/8 duty f=1KHz)			Ifp			350			mA
Junction Temperature			Tj			115			℃/W
Electrostatic Discharge(HBM)			ESD			1000			V
Electro-Optical characteristics (TA=25°C)
Parameter	Test Condition	Symbol		Color	Value					Unit
					Min		Typ	Max
Color Temperature	IF=300mA	CCT		Y	--		--	--		K
Forward voltage	IF=300mA	Vf		Y	2.0		--	2.4		V
luminous flux	IF=300mA	φ		Y	20		--	30		LM
Viewing angle at 50% IV	IF=300mA	2θ1/2		Y	--		120	--		Deg
Dominant wavelength	IF=300mA	λd		--	590		--	595		nm
Reverse current	Vr=5V	Ir		Y	--		--	--		μA
Color Rendering Index	IF=300mA	CRI		--	--		70	--		Ra

Yellow LED Light Emitting Diode Chip 300 MA Current For Car Turn Signal

Application field

Are widely used in the LED lamp, LED bulb light, LED panel light, LED ceiling lamp, LED street light, LED lamp, miner's lamp, stage light, flashlight, lighting, lamp lighting lamps and lanterns, as well as outdoor billboards, such as electronic display, traffic lights, signs, car tail lights, LED modules, LCD back light, LED lighting lighting, LED soft/hard light bar, etc., is the better choice to replace traditional lighting light source.
