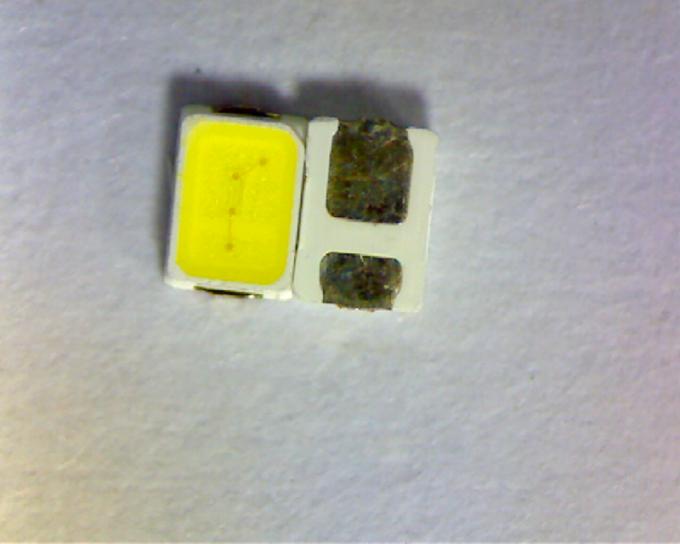

Cellphone Application 1w Smd Led , Mobile Phone Flash Lamp 2016 SMD 3v Led Chip
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH2016W
Minimum Order Quantity: 10K
Price: Please inquiry
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days
Detailed Product Description
| Type: | smd led | Chip Material: | InGaN |
|---|---|---|---|
| Emitting Color: | Pure White | Luminous Intensity: | Customers' Requirements |
| Luminous Flux(lm): | 50-55LM | Power: | 0.5W |
| Viewing Angle(°): | 120 Degree | Color Rendering Index: | 70 |
| Color Temperature: | 6000-6500K | Operating Temperature: | -20 - 85 |
| Chip Brand: | Epistar Chip, Sanan Chip,Epileds Chip | Current: | 150mA |
| Voltage: | 3.0-3.4V | Warranty: | 2 Years |
| Lifespan: | 50000-100000H |
Cellphone Application 0.1W 0.2W 0.5W 1W Chip Photoflash Use Mobile Phone Flash Lamp 2016 SMD LED
Specification
|
Setting Information |
|
|
Item name |
2016 smd led |
|
voltage |
3.0-3.3V |
|
Current |
20mA/60mA/150mA |
|
light color |
warm white ,natural white,cool white |
|

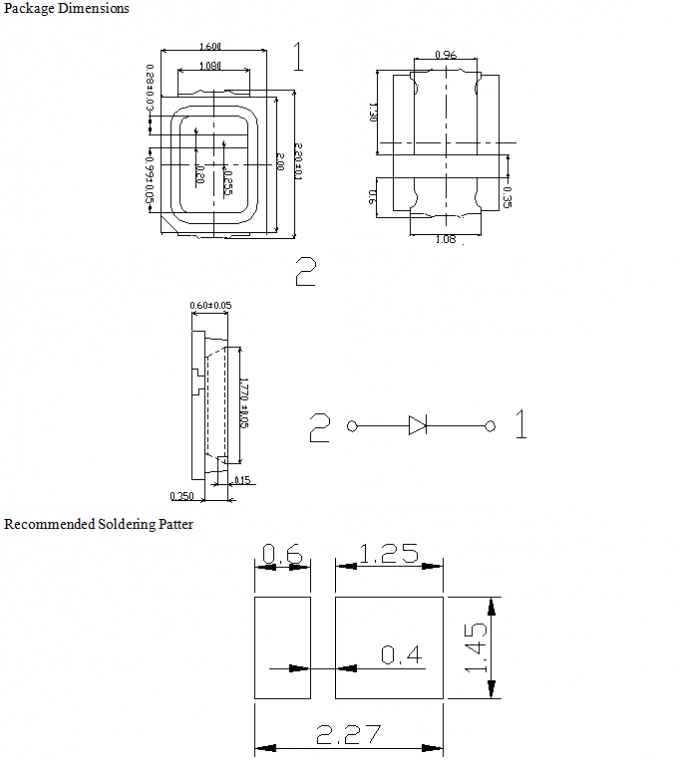

Size |
2.0*1.6*0.6mm |
|
temperature |
2700-20000k |
|
Chip |
Epistar,Sanan,Epileds |
|
Working life |
50000 hours |
|
Color |
CCT |
Voltage |
Current |
CRI |
|
warm white |
2800-3300K |
3.0-3.3V
|
60mA/150mA |
70/80available
|
|
natural white |
4000-5000K |
|||
|
daylight white |
5000-5500K;6000-6500K |
|||
|
cool white |
>7000K |
|
available product |
|||
|
power |
0.2w/0.5w |
||
|
lm |
22-24lm/26-28lm/28-30lm/55-60lm/60-65lm |
||
|
color |
white/yellow/red/green/blue/rgb |
||
|
related product |
3528,4014,3014 ,5730,5050,3030,COB,leds with pcb |
||
Product Description
| SURFACE MOUNT LED LAMPS | |||||||||
| Product Type:YHW2016 | |||||||||
| Absolute maximum ratings (Ta=25°C) | |||||||||
| Parameter |
Symbol |
Value | Unit | ||||||
| Forward current |
If |
150 | mA | ||||||
| Reverse voltage | Vr | 5 | V | ||||||
| Power dissipation | Pd | 0.54 | W | ||||||
| Operating temperature range | Top | -25~+80 | °C | ||||||
| Storage temperature range | Tstg | -30~+85 | °C | ||||||
|
Peak pulsing current (1/8 duty f=1KHz) |
Ifp | 200 | mA | ||||||
| Electro-Optical characteristics (TA=25°C) | |||||||||
Parameter |
Test Condition |
Symbol |
Value | Unit | |||||
| Min | Typ | Max | |||||||
| Color Temperature | If=150mA | CCT | 6000 | -- | 6500 | K | |||
| Forward voltage | If=150mA | Vf | 3 | -- | 3.4 | V | |||
| luminous flux |
If=150mA |
φ | 45 | -- | 50 | LM | |||
|
Viewing angle at 50% IV |
If=150mA | 2θ1/2 | -- | 120 | -- | Deg | |||
|
Dominant wavelength |
If=150mA |
λd | -- | -- | -- | nm | |||
| Reverse current | Vr=5V | Ir | -- | 5 | -- | μA | |||
We provide EMS DHL UPS FedEx TNT that several different types of express allows you to select, under normal circumstances, the transport time is in 5 to 10 days or so, if large cargo, go shipping, so time is longer, but safer, and the freight is lower.
Application field
Are widely used in the LED lamp, LED bulb light, LED panel light, LED ceiling lamp, LED street light, LED lamp, miner's lamp, stage light, flashlight, lighting, lamp lighting lamps and lanterns, as well as outdoor billboards, such as electronic display, traffic lights, signs, car tail lights, LED modules, LCD back light, LED lighting lighting, LED soft/hard light bar, etc., is the better choice to replace traditional lighting light source.
