Stage Light 3020 SMD LED 1500 - 2000 Mcd Green Color 50000 -100000 H Lifespan
Product Details:
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH3020G
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days
Detailed Product Description
| Type: | smd led | Chip Material: | InGaN |
|---|---|---|---|
| Emitting Color: | Green | Luminous Intensity: | Customers' Requirements |
| Luminous Flux(lm): | 1500-2000mcd | Power: | 0.06W |
| Viewing Angle(°): | 120 Degree | Color Rendering Index: | Null |
| Color Temperature: | 520-525nm | Operating Temperature: | -20 - 85 |
| Chip Brand: | Epistar Chip, Sanan Chip,Epileds Chip | Current: | 20mA |
| Voltage: | 3.0-3.4V | Warranty: | 2 Years |
| Lifespan: | 50000-100000H |
Green Color 3020 Smd Led 1500-2000mcd High Quality 0.06w 515-520nm for Stage light, bar spotlight
Specification
|
Setting Information |
|
|
Item name |
3020 smd led |
|
voltage |
2.9~3.4V |
|
Current |
20mA |
|
light color |
Green |
|
Size |
3.0*2.0*1.3mm |
|
temperature |
520-525nm |
|
Chip |
Epistar,Sanan |
|
Working life |
50000 hours |
|
Color |
CCT |
Voltage |
Current |
CRI |
|
warm white |
2800-3200K |
2.9-3.3V |
20mA
|
80 |
|
natural white |
4000-5000K |
|||
|
daylight white |
5000-5500K;6000-6500K |
|||
|
cool white |
>7000K |
Product Description
| SURFACE MOUNT LED LAMPS | |||||||||
| Product Type:YH3020G | |||||||||
| Absolute maximum ratings (Ta=25°C) | |||||||||
| Parameter |
Symbol |
Value | Unit | ||||||
| Forward current |
If |
20 | mA | ||||||
| Reverse voltage | Vr | 5 | V | ||||||
| Power dissipation | Pd | 0.06 | W | ||||||
| Operating temperature range | Top | -25~+80 | °C | ||||||
| Storage temperature range | Tstg | -30~+85 | °C | ||||||
|
Peak pulsing current (1/8 duty f=1KHz) |
Ifp | 30 | mA | ||||||
| Electro-Optical characteristics (TA=25°C) | |||||||||
Parameter |
Test Condition |
Symbol |
Value | Unit | |||||
| Min | Typ | Max | |||||||
| Wavelength | If=20mA | WL | 520 | -- | 525 | NM | |||
| Forward voltage | If=20mA | Vf | 3.0 | -- | 3.4 | V | |||
| luminous flux |
If=20mA |
φ | 1500 | -- | 2000 | MCD | |||
|
Viewing angle at 50% IV |
If=20mA | 2θ1/2 | -- | 120 | -- | Deg | |||
|
CRI |
-- |
-- | -- | -- | Ra | ||||
| Reverse current | Vr=5V | Ir | -- | 5 | -- | μA | |||

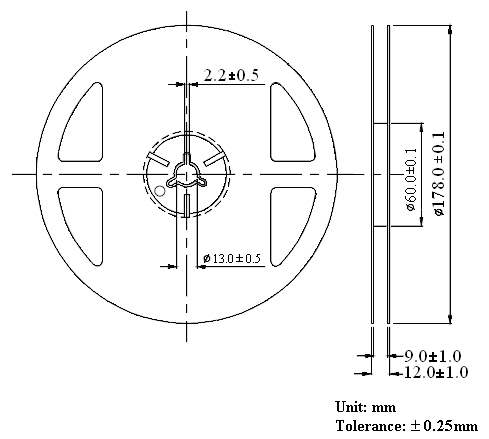

Reel Dimensions:
Carrier Tape Dimensions:
Loaded quantity 3000 PCS Per reel.
Application field
Are widely used in the LED lamp, LED bulb light, LED panel light, LED ceiling lamp, LED street light, LED lamp, miner's lamp, stage light, flashlight, lighting, lamp lighting lamps and lanterns, as well as outdoor billboards, such as electronic display, traffic lights, signs, car tail lights, LED modules, LCD back light, LED lighting lighting, LED soft/hard light bar, etc., is the better choice to replace traditional lighting light source.
