High Brightness SMD LED Chip Natural White Led Lens Molding Natural White

Product Details:
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH3020NW
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description

Type:	smd led	Chip Material:	InGaN
Emitting Color:	Natural White	Luminous Intensity:	Customers' Requirements
Luminous Flux(lm):	7-8LM	Power:	0.06W
Viewing Angle(°):	120 Degree	Color Rendering Index:	Ra>80
Color Temperature:	4000-4500K	Operating Temperature:	-20 - 85
Chip Brand:	Epistar Chip, Sanan Chip,Epileds Chip	Current:	20mA
Voltage:	3.0-3.4V	Warranty:	2 Years
Lifespan:	50000-100000H

Smd 3020 led lens molding high brightness Natural White 4000K-4500K for line light

20MA 0.06W SMD 3020 LED CHIP SPECIFICATIONS Ra>80

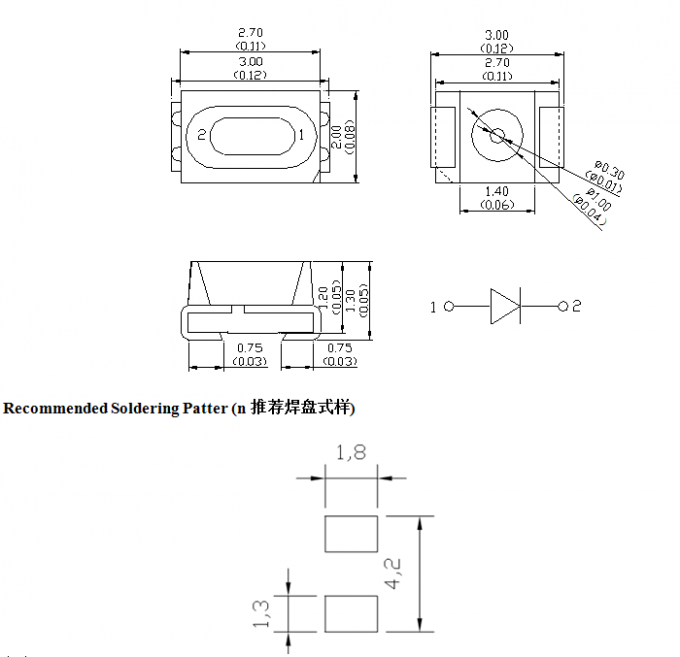

This is our 1.3mm Height PLCC-2 Package Top View 3020 LED grow lights components, the YH3020NW series is available in soft red, orange, yellow, green, blue and white. The LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.

Our led grow light mainly are red and blue spectrum, these two spectrums are the peak of plants absorption.

Product Description

High Brightness SMD LED Chip Natural White Led Lens Molding Natural White

Product features:

1.High lumen: 7-8lm
2.High Brightness Decay
3.Stable Performance & Great CCT Inity.
4Color Range:warm white, natural white, cool white,RGB.

Product quality:

1.good raw materials
2. Copper layer
3. Gold wire connection

4.Sanan chips
5. Lifespan is >50 000 hours easily

SURFACE MOUNT LED LAMPS
Product Type:YH3020NW
Absolute maximum ratings (Ta=25°C)
Parameter			Symbol			Value		Unit
Forward current			If			20		mA
Reverse voltage			Vr			5		V
Power dissipation			Pd			0.06		W
Operating temperature range			Top			-25~+80		°C
Storage temperature range			Tstg			-30~+85		°C
Peak pulsing current (1/8 duty f=1KHz)			Ifp			30		mA
Electro-Optical characteristics (TA=25°C)
Parameter	Test Condition	Symbol		Value					Unit
				Min	Typ		Max
Color Temperature	If=20mA	CCT		4000	---		4500		K
Forward voltage	If=20mA	Vf		3	--		3.4		V
luminous flux	If=20mA	φ		7	--		8		LM
Viewing angle at 50% IV	If=20mA	2θ1/2		--	120		--		Deg
Color rendering index	If=20mA	CRI		--	80		--		Ra
Reverse current	Vr=5V	Ir		--	5		--		μA

High Brightness SMD LED Chip Natural White Led Lens Molding Natural White

Application field

Are widely used in the LED lamp, LED bulb light, LED panel light, LED ceiling lamp, LED street light, LED lamp, miner's lamp, stage light, flashlight, lighting, lamp lighting lamps and lanterns, as well as outdoor billboards, such as electronic display, traffic lights, signs, car tail lights, LED modules, LCD back light, LED lighting lighting, LED soft/hard light bar, etc., is the better choice to replace traditional lighting light source.
