60 MA Current Led Smd 2835 Epistar Cool White 22 - 24 Lm Specifications

Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH2835W
Minimum Order Quantity: 10K
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description

Type:	smd led	Chip Material:	InGaN
Emitting Color:	Pure White	Luminous Intensity:	Customers' Requirements
Luminous Flux(lm):	22-24LM	Power:	0.2W
Viewing Angle(°):	120 Degree	Color Rendering Index:	80
Color Temperature:	6000-6500K	Operating Temperature:	-20 - 85
Chip Brand:	Epistar Chip, Sanan Chip,Epileds Chip	Current:	60mA
Voltage:	3.0-3.4V	Warranty:	2 Years
Lifespan:	50000-100000H

Specification

Setting Information
Item name	2835 smd led
voltage	3.1-3.3V
Current	60mA/150mA
light color	warm white ,natural white,cool white
Size	2.83.50.8mm
temperature	2700-20000k
Chip	Epistar,Sanan
Working life	50000 hours

Color	CCT	Voltage	Current	CRI
warm white	2800-3300K	3.1-3.3V	60mA/150mA	70/80available
natural white	4000-5000K
daylight white	5000-5500K;6000-6500K
cool white	>7000K

available product
power	0.2w/0.5w
lm	24-26lm/25-27lm/26-28lm/28-30lm/30-32lm/55-60lm/60-65lm
color	white/yellow/red/green/blue/rgb
related product	3528,4014,3014 ,5730,5050,3030,COB,leds with pcb

Product Description

60 MA Current Led Smd 2835 Epistar Cool White 22 - 24 Lm Specifications

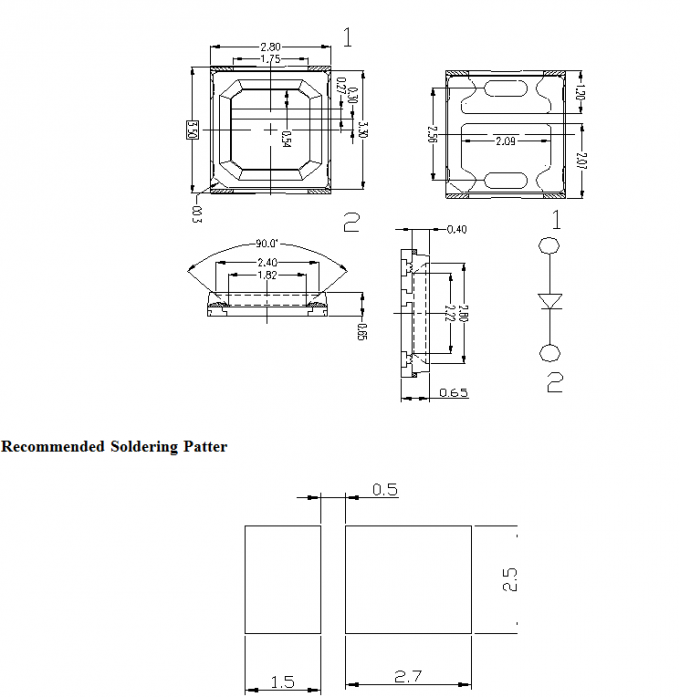

SURFACE MOUNT LED LAMPS
(Product Type):YKW2835W
Absolute maximum ratings (Ta=25°C)
Parameter			Symbol			Value			Unit
Forward current			If			60			mA
Reverse voltage			Vr			5			V
Power dissipation			Pd			200			mW
Operating temperature range			Top			-25~+80			°C
Storage temperature range			Tstg			-30~+85			°C
Peak pulsing current(1/8 duty f=1KHz)			Ifp			100			mA
Junction Temperature			Tj			115			℃/W
Electrostatic Discharge(HBM)			ESD			1000			V
Electro-Optical characteristics (TA=25°C)
Parameter	Test Condition	Symbol		Color	Value					Unit
					Min		Typ	Max
Color Temperature	If=60mA	CCT		AW	6000		--	6500		K
Forward voltage	If=60mA	Vf		AW	3.0		--	3.4		V
luminous flux	If=60mA	φ		AW	22		--	24		LM
Viewing angle at 50% IV	If=60mA	2θ1/2		AW	--		120	--		Deg
Dominant wavelength	If=60mA	λd		--	--		--	--		nm
Reverse current	Vr=5V	Ir		AW	--		5	--		μA
Color Rendering Index	If=60mA	CRI		--	--		80	--		Ra
