Backlight Led 5050 Rgb 1.60 Mm Height Custom Luminous Intensity Easy Use

Product Details:
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH5050RGB02
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description

Type:	smd led	Chip Material:	InGaN
Emitting Color:	RGB	Luminous Intensity:	Customers' Requirements
Luminous Flux(lm):	High Brightness	Power:	0.2W
Viewing Angle(°):	120 Degree	Color Rendering Index:	Null
Color Temperature:	R:620NM G:520NM B:460NM	Operating Temperature:	-20 - 85
Chip Brand:	Epistar Chip, Sanan Chip,Epileds Chip	Current:	60mA
Voltage:	R:2.0-2.4V G/B:3.0-3.4V	Warranty:	2 Years
Lifespan:	50000-100000H

SMD 5050 1.60mm Height Top View Full Color RGB Chip LEDs for Backlight

Item Name	5050 0.2W RGB
Luminous Intensity	Red: 400-600mcd
	Green: 1500-2000mcd
	Blue:300-500mcd

Wavelength	Red: 620-630nm
	Green: 520-530nm
	Blue:460-470nm

Voltage	Red: 2.0-2.4V
	Green: 3.0-3.4V
	Blue: 3.0-3.4V
Current	20mA each one color
CRI	Null
Power	3*0.06 Watt

Product Description

Package Dimensions

Backlight Led 5050 Rgb 1.60 Mm Height Custom Luminous Intensity Easy Use

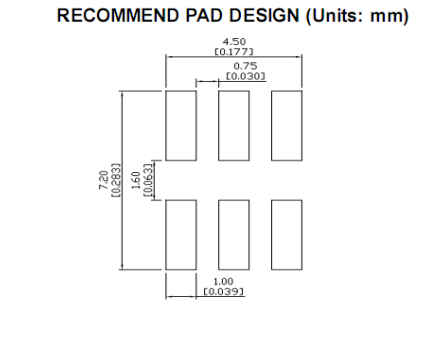

Recommended Soldering Patter

Backlight Led 5050 Rgb 1.60 Mm Height Custom Luminous Intensity Easy Use

SURFACE MOUNT LED LAMPS
Product Type:YH5050RGB02
Absolute maximum ratings (Ta=25°C)
Parameter			Symbol			Value			Unit
Forward current			If			60			mA
Reverse voltage			Vr			5			V
Power dissipation			Pd			0.16			W
Operating temperature range			Top			-25~+80			°C
Storage temperature range			Tstg			-30~+85			°C
Peak pulsing current(1/8 duty f=1KHz)			Ifp			80			mA
Junction Temperature			Tj			115			℃/W
Electrostatic Discharge(HBM)			ESD			1000			V
Electro-Optical characteristics (TA=25°C)
Parameter	Test Condition	Symbol		Color	Value					Unit
					Min		Typ	Max
Color Temperature	I_F=20mA	CCT		R G B	--		--	--		K
Forward voltage	I_F=20mA	Vf		R G B	2.0 2.8 3.0		--	2.4 3.4 3.4		V
luminous flux	I_F=20mA	φ		R G B	2 5 1		--	3 8 1.5		LM
Viewing angle at 50% IV	I_F=20mA	2θ1/2		R G B	--		120	--		Deg
Dominant wavelength	I_F=20mA	λd		R G B	620 520 460		--	630 525 470		nm
Reverse current	Vr=5V	Ir		R G B	--		5	--		μA
Color Rendering Index	I_F=20mA	CRI		--	--		--	--		Ra
