Detailed Product Description



Type:smd ledChip Material:InGaN
Emitting Color:RGBLuminous Intensity:Customers' Requirements
Luminous Flux(lm):High BrightPower:0.6 W
Viewing Angle(°):120 DegreeColor Rendering Index:Null
Color Temperature:R:620NM G:520NM B:460NMOperating Temperature:-20-85
Chip Brand:Epistar Chip, Sanan Chip,Epileds ChipCurrent:180mA
Voltage:R:2.0-2.4V G/B:3.0-3.4VWarranty:2years
Lifespan:50000-100000H

 Full Colours PLCC6 SMT LED Beads 3 in 1 Diode Tri-Color Chip 6 Pins 2835 RGB SMD LED

  • Features:

  • PLCC-6 package.

  • White package.

  • Optical indicator.

  • Colorless clear window.

  • Ideal for backlight and light pipe application.

  • Inter reflector.

  • Middle Current (180mA) operation.

  • Wide viewing angle.

  • Suitable for automatic placement equipment.

  • Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.

  • Available on tape and reel (8mm Tape).

  • The product itself will remain within RoHS compliant Version.



  • Descriptions:

  • The 3528 is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector, this feature makes the SMT TOP LED ideal for light pipe Application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.



  • Applications:

  • Automotive: Backlight in dashboards and switches.

  • Telecommunication: Indicator and backlight in telephone and fax.

  • Indicator and backlight for audio and video equipment.

  • Indicator and backlight in office and family equipment.

  • Flat backlight for LCD’s, switches and symbols.

  • Light pipe application.

  • General use.





Product Description

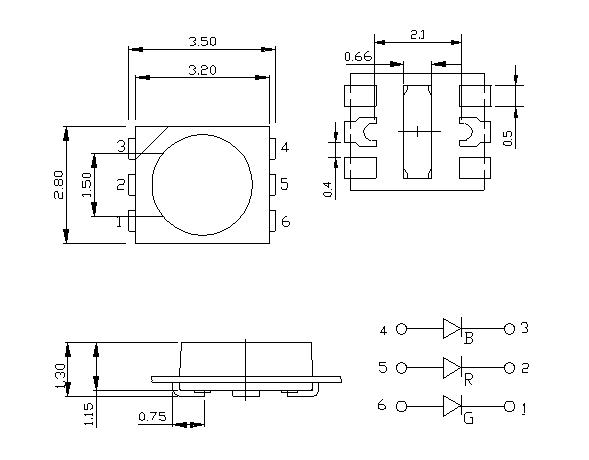

Package Dimensions

                                             180 MA Current RGB LED Chip -20 To 85 °C Operating Temp 2 Years Warranty

Recommended Soldering Patter

                                                                       180 MA Current RGB LED Chip -20 To 85 °C Operating Temp 2 Years Warranty



SURFACE MOUNT LED LAMPS
Product Type:YH3528RGBP6
Absolute maximum ratings (Ta=25°C)
Parameter
Symbol
ValueUnit
Forward current
If
180mA
Reverse voltageVr5V
Power dissipationPd0.6W
Operating temperature rangeTop-25~+80°C
Storage temperature rangeTstg-30~+85°C
Peak pulsing current(1/8 duty f=1KHz)Ifp200mA
Junction TemperatureTj115℃/W
Electrostatic Discharge(HBM)ESD1000V
Electro-Optical characteristics (TA=25°C)



Parameter

Test

Condition



Symbol



Color

ValueUnit
MinTypMax



Color Temperature

IF=60mACCT

R

G

B

------K



Forward voltage

IF=60mAVf

R

G

B

2.0

2.8

3.0

--

2.4

3.4

3.4

V



luminous flux

IF=60mAφ

R

G

B

5

12

3

--

10

18

5

LM



Viewing angle at 50% IV

IF=60mA2θ1/2

R

G

B

--120--Deg



Dominant wavelength

IF=60mAλd

R

G

B

620

520

460

--

630

525

470

nm

Reverse current

Vr=5VIr

R

G

B

--5--μA

Color Rendering Index

IF=60mACRI--------Ra

                  180 MA Current RGB LED Chip -20 To 85 °C Operating Temp 2 Years Warranty



Reel Dimensions:
0.80mm Height Top View White LED SMD Chip Promotion 3014 6000 -7500K


Carrier Tape Dimensions:
Loaded quantity 2000 PCS Per reel.
