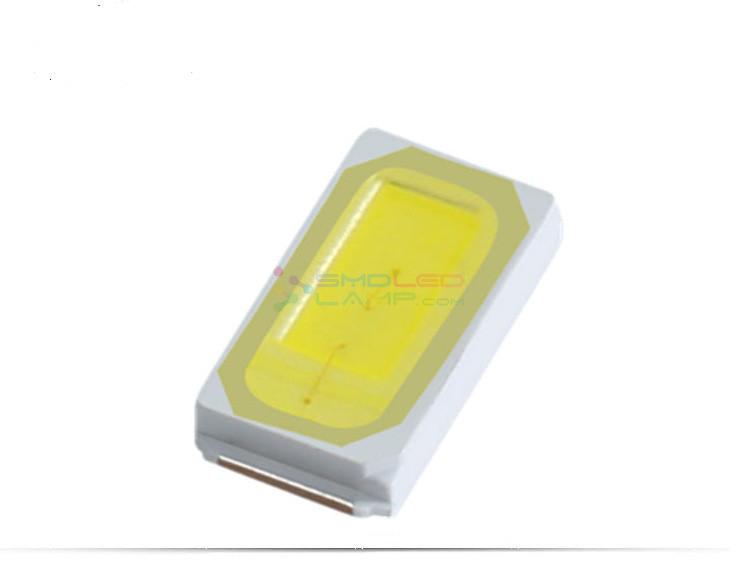

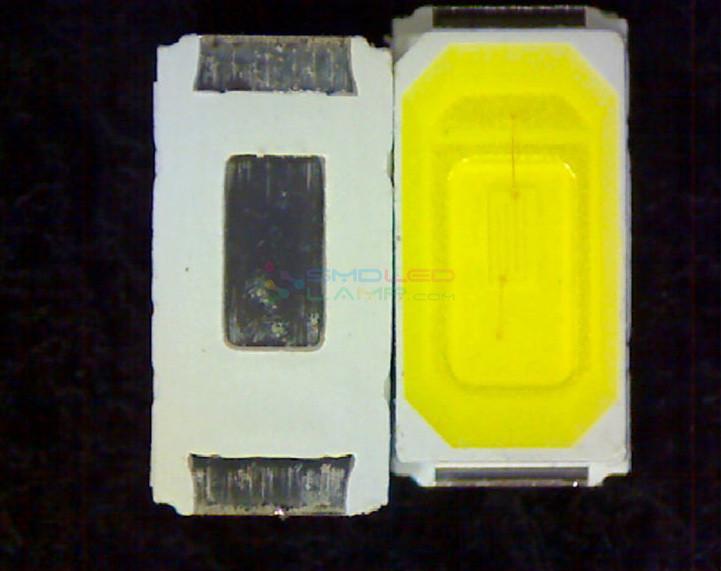

200 - 220 Lm / W 5730 Smd Chip 60mA Natural White 4000 - 4500 K For T8 Tube Light

Product Details:
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YHHE5730NW02
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description



Type:smd led Chip Material:InGaN
Emitting Color:Natural White Luminous Intensity:Customers' Requirements
Luminous Flux(lm):34-36LM Power:0.2W
Viewing Angle(°):120 Degree Color Rendering Index:80
Color Temperature:4000-4500K Operating Temperature:-20 - 85
Chip Brand:Epistar Chip, Sanan Chip,Epileds Chip Current:60mA
Voltage:2.8-3.0V Warranty:2 Years
Lifespan:50000-100000H

200-220lm/W High efficiency smd 5730 led 0.2w 60mA natural white 4000-4500K For T8 Tube Light



Features of 0.2W high efficiency led diodes Bridgelux chips
* Super high Flux output and high Luminance
* Designed for high current operation
* Low thermal resistance
* SMT solder technology
* Lead Free product
* ROHS compliant
Applications for 0.2 Watt high power led diodes
* General Illumination
- Outdoor & Indoor architectural lighting
- Decorative lighting
- Torch lighting
- Portable lighting and Reading lighting
- Traffic signaling

Features:

  1. PLCC-2 package.

  2. White package.

  3. Optical indicator.

  4. Colorless clear window.

  5. Ideal for backlight and light pipe application.

  6. Inter reflector.

  7. Wide viewing angle.

  8. Suitable for automatic placement equipment.

  9. Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.

  10. Available on tape and reel (8mm Tape).

  11. The product itself will remain within RoHS compliant Version.


Descriptions:

  1. The TOP 5730 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.


Applications:

  1. Automotive: Backlighting in dashboards and switches.

  2. Telecommunication: Indicator and backlight in telephone and fax

  3. Indicator and backlight for audio and video equipment.

  4. Indicator and backlight in office and family equipment.

  5. Flat backlight for LCD’s, switches and symbols.

  6. Light pipe application.

  7. General use.

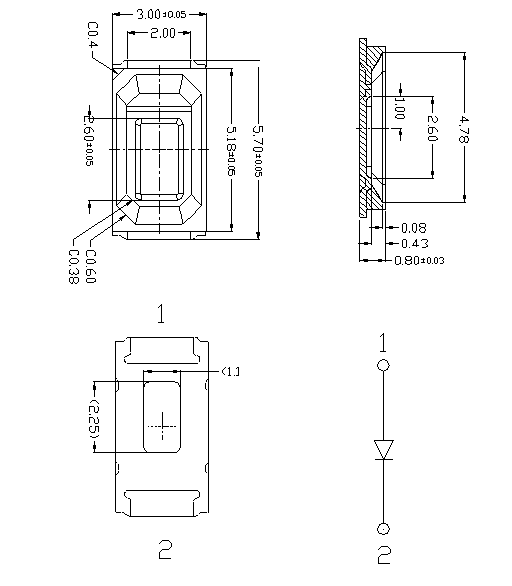

Package Dimensions



            200 - 220 Lm / W 5730 Smd Chip 60mA Natural White 4000 - 4500 K For T8 Tube Light

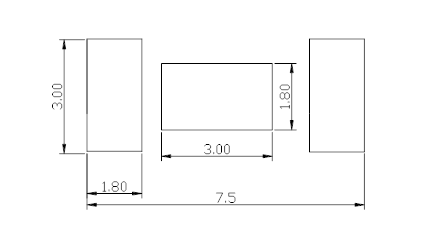

Recommended Soldering Patter

                     200 - 220 Lm / W 5730 Smd Chip 60mA Natural White 4000 - 4500 K For T8 Tube Light






5730 smd led Perfect Product Package—We Care about Your Goods and You



Product Type:YHHE5730NW02
Absolute maximum ratings (Ta=25°C)
Parameter
Symbol
Value Unit
Forward current
If
60 mA
Reverse voltage Vr 5 V
Power dissipation Pd 0.24 W
Operating temperature range Top -25~+80 °C
Storage temperature range Tstg -30~+85 °C

Peak pulsing current

(1/8 duty f=1KHz)

Ifp 100 mA
Electro-Optical characteristics (TA=25°C)
Parameter

Test

Condition



Symbol

Value Unit
Min Typ Max
Color Temperature If=60mA CCT 4000 -- 4500 K
Forward voltage If=60mA Vf 2.8 -- 3.0 V
luminous flux
If=60mA
φ 34 -- 36 Lm



Viewing angle at 50% IV

If=60mA 1/2 -- 120 -- Deg



Dominant wavelength

If=60mA
λd -- -- -- nm
Reverse current Vr=5V Ir -- 5 -- μA

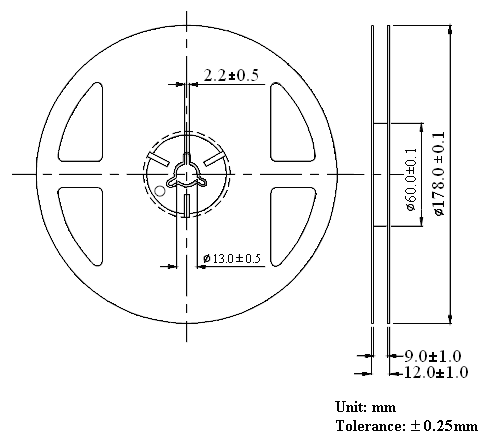

Reel Dimensions:
0.80mm Height Top View White LED SMD Chip Promotion 3014 6000 -7500K
Carrier Tape Dimensions:
Loaded quantity 3000 PCS Per reel.





200 - 220 Lm / W 5730 Smd Chip 60mA Natural White 4000 - 4500 K For T8 Tube Light200 - 220 Lm / W 5730 Smd Chip 60mA Natural White 4000 - 4500 K For T8 Tube Light



Application field

Are widely used in the LED lamp, LED bulb light, LED panel light, LED ceiling lamp, LED street light, LED lamp, miner's lamp, stage light, flashlight, lighting, lamp lighting lamps and lanterns, as well as outdoor billboards, such as electronic display, traffic lights, signs, car tail lights, LED modules, LCD back light, LED lighting lighting, LED soft/hard light bar, etc., is the better choice to replace traditional lighting light source.
