Car Taillights 3535 SMD LED Dual Core Red Light 120 Illumination Angle

Product Details:
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH3535R1
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description


Type:smd led Chip Material:InGaN
Emitting Color:Red Luminous Intensity:Customers' Requirements
Luminous Flux(lm):30-40LM Power:1W
Viewing Angle(°):120 Degree Color Rendering Index:20
Color Temperature:620-630NM Operating Temperature:-20 - 85
Chip Brand:Epistar Chip, Sanan Chip,Epileds Chip Current:300mA
Voltage:2.0-2.4V Warranty:2 Years

120 illumination angle 3535 smd led dual core red light 1w 620nm for car taillights



  1. PLCC-2 package.

  2. White package.

  3. Optical indicator.

  4. Colorless clear window.

  5. Ideal for backlight and light pipe application.

  6. Inter reflector.

  7. 120 Wide viewing angle.

  8. Suitable for automatic placement equipment.

  9. Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.

  10. Available on tape and reel (8mm Tape).

  11. The product itself will remain within RoHS compliant Version.



  1. The YH3535R1 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.



  1. Automotive: Backlighting in dashboards and switches.

  2. Telecommunication: Indicator and backlight in telephone and fax

  3. Indicator and backlight for audio and video equipment.

  4. Indicator and backlight in office and family equipment.

  5. Flat backlight for LCD’s, switches and symbols.

  6. Light pipe application.

  7. General use.

Part No. Chip Material Lens Color Source Color
YH3535R1 AlGaInP Water Clear Red






Car Taillights 3535 SMD LED Dual Core Red Light 120 Illumination Angle


Product Description

Package Dimensions

                      Car Taillights 3535 SMD LED Dual Core Red Light 120 Illumination Angle

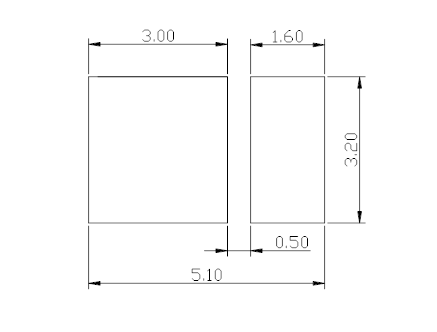

Recommended Soldering Patter

                                          Car Taillights 3535 SMD LED Dual Core Red Light 120 Illumination Angle

Product Type:YH3535R1
Absolute maximum ratings (Ta=25°C)
Value Unit
Forward current
300 mA
Reverse voltage Vr -- V
Power dissipation Pd 700 MW
Operating temperature range Top -25~+80 °C
Storage temperature range Tstg -30~+85 °C
Peak pulsing current(1/8 duty f=1KHz) Ifp 400 mA
Junction Temperature Tj 115 ℃/W
Electrostatic Discharge(HBM) ESD 1000 V
Electro-Optical characteristics (TA=25°C)









Value Unit
Min Typ Max


Color Temperature

IF=300mA CCT R -- -- -- K


Forward voltage

IF=300mA Vf R 2 -- 2.4 V


luminous flux

IF=300mA φ R 30 -- 40 LM


Viewing angle at 50% IV

IF=300mA 2θ1/2 R -- 120 -- Deg


Dominant wavelength

IF=300mA λd -- 620 -- 630 nm


Reverse current

Vr=5V Ir R -- -- -- μA


Color Rendering Index

IF=300mA CRI -- -- -- -- Ra


Reel Dimensions:
0.80mm Height Top View White LED SMD Chip Promotion 3014 6000 -7500K

Carrier Tape Dimensions:
Loaded quantity 5000 PCS Per reel.


Application field

Are widely used in the LED lamp, LED bulb light, LED panel light, LED ceiling lamp, LED street light, LED lamp, miner's lamp, stage light, flashlight, lighting, lamp lighting lamps and lanterns, as well as outdoor billboards, such as electronic display, traffic lights, signs, car tail lights, LED modules, LCD back light, LED lighting lighting, LED soft/hard light bar, etc., is the better choice to replace traditional lighting light source.
