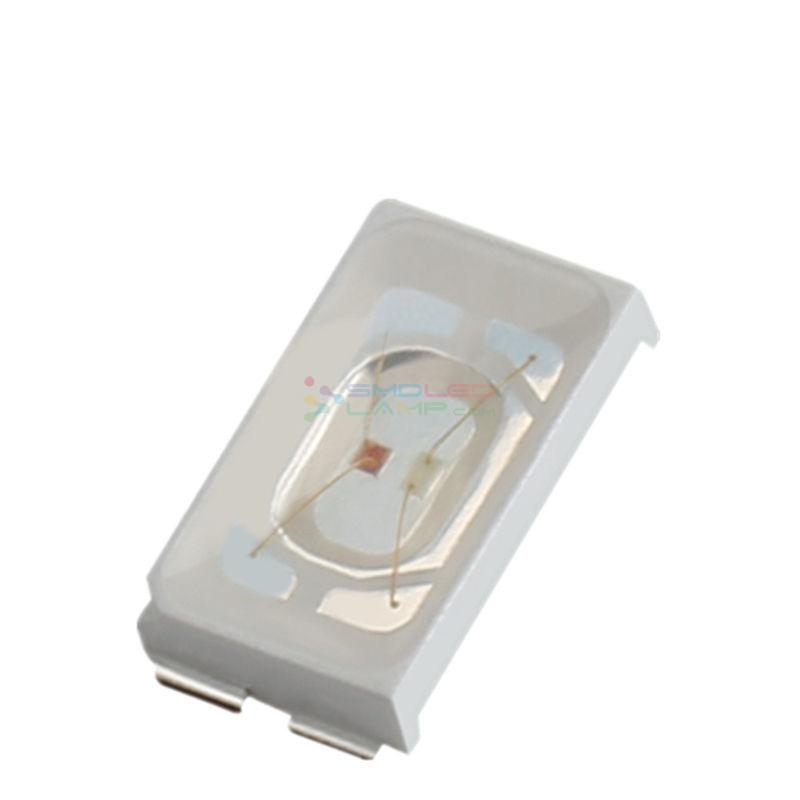

High Cri Smd 5630 Led Chip , Full Spectrum Sanan Led Chip Natural White

Product Details:
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH5630HCRI05
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description

Type:smd ledChip Material:InGaN
Emitting Color:Natural WhiteLuminous Intensity:Customers' Requirements
Luminous Flux(lm):40-45LMPower:0.5W
Viewing Angle(°):120 DegreeColor Rendering Index:RA>90, RA>95
Color Temperature:4000-4500KOperating Temperature:-20 - 85
Chip Brand:Epistar Chip, Sanan Chip,Epileds ChipCurrent:150mA
Voltage:3.0-3.4VWarranty:2 Years
Lifespan:50000-100000H


High CRI Full Spectrum Natural White R9>90 Ra>95 0.5W and 90 LED DIODE smd 5630 sanan chip led



l Emitting Color:Natural white

l Lens Type:Mix Phosphor

l Device Outline:5.6*3.0*0.9 (unit:mm)

lRoHS compliant




Features:

  1. 5.6*3.0*0.9mm size

  2. Emitting color:Green, but Red, blue, Amber, yellow, purple, pink, Warm white and white are available.

  3. Package: 3000 pieces a reel

  4. Len color: Mix Phosphor

  5. Luminous Intensity: 40-45LM

  6. Kelvin:4000-4500K

  7. Current: 150mA

  8. Voltage: 3.0-3.4V

  9. RA:95

  10. Package in 8mm tape on 7" diameter reel.

  11. Compatible with automatic placement equipment.

  12. Compatible with infrared and vapor phase reflow solder process.

  13. Mono-color type.

  14. The product itself will remain within RoHS compliant Version.




Descriptions:

  1. The YH5630HCRI05 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.

  2. Besides, lightweight makes them ideal for miniature applications, etc.


Applications:



  1. Automotive: Backlighting in dashboard and switch.

  2. Telecommunication: Indicator and backlighting in telephone, sound and fax.

  3. Flat backlight for LCD, switch and symbol.

  4. General use.



High Cri Smd 5630 Led Chip , Full Spectrum Sanan Led Chip Natural White



SURFACE MOUNT LED LAMPS
Product Type:YH5630MA05
Absolute maximum ratings (Ta=25°C)
Parameter
Symbol
ValueUnit
Forward current
If
150mA
Reverse voltageVr5V
Power dissipationPd0.54W
Operating temperature rangeTop-25~+80°C
Storage temperature rangeTstg-30~+85°C
Peak pulsing current(1/8 duty f=1KHz)Ifp200mA
Junction TemperatureTj115℃/W
Electrostatic Discharge(HBM)ESD1000V
Electro-Optical characteristics (TA=25°C)



Parameter

Test

Condition



Symbol



Color

ValueUnit
MinTypMax



Color Temperature

IF=150mACCTNW4000--4500K



Forward voltage

IF=150mAVfNW3.0--3.4V



luminous flux

IF=150mAφNW40--45LM



Viewing angle at 50% IV

IF=150mA2θ1/2NW--120--Deg



Dominant wavelength

IF=150mAλd--------nm



Reverse current

Vr=5VIrNW--5--μA



Color Rendering Index

IF=150mACRI----95--Ra

High CRI Full Spectrum Natural White R9>90 Ra>95 0.5W and 90 LED DIODE smd 5630 sanan chip led
