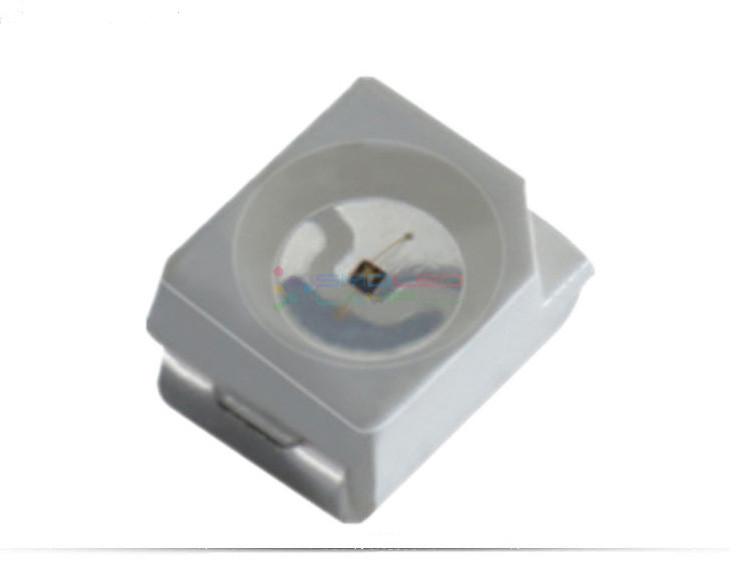

SMD 2835 High Power Ir Led Chip 120 Degree Viewing Angle For Night Vision

Product Details:
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH2835IR83002
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description

Type:	smd led	Chip Material:	InGaN
Emitting Color:	Infrared 830nm	Luminous Intensity:	Customers' Requirements
Luminous Flux(lm):	20-30mw	Power:	0.2W
Viewing Angle(°):	120 Degree	Color Rendering Index:	Null
Color Temperature:	830nm	Operating Temperature:	-20 - 85
Chip Brand:	Epistar Chip, Sanan Chip,Epileds Chip	Current:	60mA
Voltage:	1.4-1.7V	Warranty:	2 Years
Lifespan:	50000-100000H

SMD 2835 LED IR chip 830nm 0.2w infrared 940nm epistar Epileds for Night vision

Features:

Package in 8mm tape on 7" diameter reels.
Built in 1 LED chip.
Wide viewing angle.
Soldering methods: Reflow Soldering.
High performance.
The product itself will remain within RoHS compliant Version.

Descriptions:

The 2835 IR 830NM Taping is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
Besides, lightweight makes them ideal for miniature applications. etc.

Applications:

PCB mounted infrared sensor.
Infrared emitting for miniature light barrier.
Floppy disk drive.
Optoelectronic switch.

Package Dimension:

SMD 2835 High Power Ir Led Chip 120 Degree Viewing Angle For Night Vision

SURFACE MOUNT LED LAMPS
Product Type:YH2835IR73002
Absolute maximum ratings (Ta=25°C)
Parameter			Symbol			Value			Unit
Forward current			If			60			mA
Reverse voltage			Vr			5			V
Power dissipation			Pd			200			mW
Operating temperature range			Top			-25~+80			°C
Storage temperature range			Tstg			-30~+85			°C
Peak pulsing current(1/8 duty f=1KHz)			Ifp			80			mA
Junction Temperature			Tj			115			℃/W
Electrostatic Discharge(HBM)			ESD			1000			V
Electro-Optical characteristics (TA=25°C)
Parameter	Test Condition	Symbol		Color	Value					Unit
					Min		Typ	Max
Color Temperature	I_F=60mA	CCT		IR	--		--	--		K
Forward voltage	I_F=60mA	Vf		IR	1.4		--	1.7		V
Total Radiated Power	I_F=60mA	φ		IR	30		--	40		MW
Viewing angle at 50% IV	I_F=60mA	2θ1/2		IR	--		120	--		Deg
Dominant wavelength	I_F=60mA	λd		--	--		830	--		nm
Reverse current	Vr=5V	Ir		IR	--		5	--		μA
Color Rendering Index	I_F=60mA	CRI		--	--		--	--		Ra

Please read the following notes before using the datasheets:

1. Over-current-proof

Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change (Burn out will happen).

2. Storage

2.1 Do not open moisture proof bag before the products are ready to use.

2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less.

2.3 The LEDs should be used within a year.

2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less.

2.5 The LEDs should be used within 168 hours (7 days) after opening the package.

2.6 If the moisture adsorbent material (silica gel) has fabled away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment: 60±5℃ for 24 hours.

3. Soldering Condition

3.1 Pb-free solder temperature profile.

1.9mm Height Top View 3528 Infrared Emitting Diode , Infrared Chip LED 850nm

3.2 Reflow soldering should not be done more than two times.

3.3 When soldering, do not put stress on the LEDs during heating.

3.4 After soldering, do not warp the circuit board.

4. Soldering Iron

Each terminal is to go to the tip of soldering iron temperature less than 260℃ for 5 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.

5. Repairing

Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.

1.9mm Height Top View 3528 Infrared Emitting Diode , Infrared Chip LED 850nm

6. Caution in ESD

Static Electricity and surge damages the LED. It is recommended to use a wrist band or anti-electrostatic glove when handling the LED. All devices, equipment and machinery must be properly grounded.

Reel Dimensions:

Carrier Tape Dimensions:
Loaded quantity 4000 PCS Per reel.
