1.3 MM Thickness Smd Uv Led 3020 Type 365 - 370 NM For Sterilization Equipment

Product Details:
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH3020UV
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description

Type:	smd led	Chip Material:	InGaN
Emitting Color:	UV	Luminous Intensity:	Customers' Requirements
Luminous Flux(lm):	3-4mw	Power:	0.1W
Viewing Angle(°):	120 Degree	Color Rendering Index:	Null
Color Temperature:	365-370nm	Operating Temperature:	-20 - 85
Chip Brand:	Epistar Chip, Sanan Chip,Epileds Chip	Current:	30mA
Voltage:	3.2-3.6V	Warranty:	1 Years
Lifespan:	50000-100000H

1.3MM thickness Deep uv smd uv led 3020 type 0.1w 30mA 365-370NM for Sterilization equipment

Electrical / Optical characteristics uv led 3528 datasheet

Absolute Maximum Ratings (TA=25ºC) uv led diode, uv led chip, uv led light,smd uv led,uv smd led,uv led uv light

IFP Conditions : 1/10 Duty Cycle, 0.1 msec Pulse Width.

Item	Symbol	Absolute Maximum Rating	Unit
Forward Current	IF	20	mA
Pulse Forward Current	IFP	50	mA
Reverse Voltage	VR	5	V
Power Dissipation	PD	50	mW
Operating Temperature	Topr	-40ºC To +85ºC	°C
Storage Temperature	Tstg	-40ºC To +85ºC	°C
Soldering Temperature	Tsld	Reflow Soldering: 260ºC Hand Soldering : 350ºC	for 10sec. for 3sec.

Initial Electrical/Optical Characteristics (TA=25±5ºC)

Symbol	Item	Units	Min.	Typ.	Max.
VF	Forward Voltage	V	3.0	-	3.4	IF=20mA
IR	Reverse Current	uA	-	-	5	VR=5V
2θ	Viewing Angle	º	-	120º	-	IF=20mA
ø	Luminous flux	lm	1	-	2	IF=20mA
IV	Light intensity	mcd	30	-	50	IF=20mA
WLD	Dominant wavelength	nm	390	395	400	IF=20mA

Symbol

Item

Units

Min.

Typ.

Max.

Forward Voltage

3.0

3.4

IF=20mA

Reverse Current

VR=5V

2θ

Viewing Angle

120º

IF=20mA

Luminous flux

IF=20mA

Light intensity

mcd

IF=20mA

WLD

Dominant wavelength

390

395

400

IF=20mA

Cautions 3528 SMD LED Datasheet

1)Soldering Conditions

Number of reflow process shall be less than 2 times and cooling process to normal temperature is required between first and Second soldering process.

2)Static Electricity

It is recommended that a wrist band or an anti-electrostatic glove be used when handling the LEDs.All devices, equipment and machinery must be properly grounded.Damaged LEDs will show some unusual characteristics such as the forward voltage becomes lower, or the LEDs do not light at the low current. Criteria : (VF > 2.0V at IF=0.5mA)

3)Moisture Proof Package

It is recommended that moisture proof package be used .

4)Storage

Before opening the package ,The LEDs should be kept at 30°C or less and 70%RH or less. The LEDs should be
used within a year.

5)After opening the package, The LEDs should be soldered within 24 hours (1days) after opening the package.

Application of 3020 UV LED

3528 smd UV LED widely use in Mosquito lamp, nail art lamps, curing light, counterfeit lamp, UV LED Strip etc.

1.3 MM Thickness Smd Uv Led 3020 Type 365 - 370 NM For Sterilization Equipment

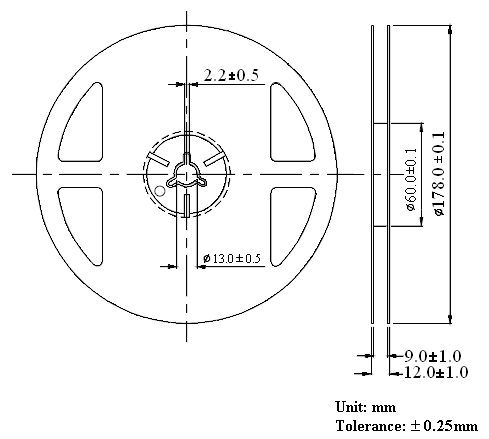

Reel Dimensions:

Carrier Tape Dimensions:
Loaded quantity 3000 PCS Per reel.

We provide EMS DHL UPS FedEx TNT that several different types of express allows you to select, under normal circumstances, the transport time is in 5 to 10 days or so, if large cargo, go shipping, so time is longer, but safer, and the freight is lower.

Application field

Are widely used in the LED lamp, LED bulb light, LED panel light, LED ceiling lamp, LED street light, LED lamp, miner's lamp, stage light, flashlight, lighting, lamp lighting lamps and lanterns, as well as outdoor billboards, such as electronic display, traffic lights, signs, car tail lights, LED modules, LCD back light, LED lighting lighting, LED soft/hard light bar, etc., is the better choice to replace traditional lighting light source.
