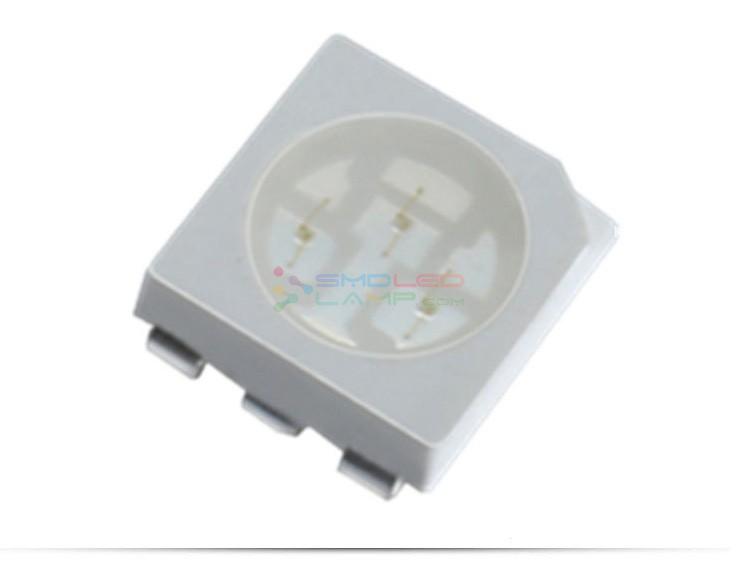

0.2 W Green Smd 5050 Led Chips 15 - 20 LM Luminous Flux Long Life Span

Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH5050G02
Minimum Order Quantity: 6K
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description

Type:	smd led	Chip Material:	InGaN
Emitting Color:	Green	Luminous Intensity:	Customers' Requirements
Luminous Flux(lm):	15-20LM	Power:	0.2W
Viewing Angle(°):	120 Degree	Color Rendering Index:	Null
Color Temperature:	520-525nm	Operating Temperature:	-20 - 85
Chip Brand:	Epistar Chip, Sanan Chip,Epileds Chip	Current:	60mA
Voltage:	3.0-3.4V	Warranty:	2 Years
Lifespan:	50000-100000H

0.2w green 520-525nm smd 5050 led chip with LM80/ROHS certification China factory for led strips

Features:

The LED are available with different color

Utilizing advanved technology

High brightness,long life

Advantages:

High-intensity

uniform illumination

,Energy-saving and environmental protection

Low-power consumption

Well consistency

Bins sorting

Full-inspection before dispatch

CE & RoHS Certification

Product Description

0.2 W Green Smd 5050 Led Chips 15 - 20 LM Luminous Flux Long Life Span

SURFACE MOUNT LED LAMPS
Product Type:YHG5050
Absolute maximum ratings (Ta=25°C)
Parameter			Symbol			Value			Unit
Forward current			If			60			mA
Reverse voltage			Vr			5			V
Power dissipation			Pd			200			mW
Operating temperature range			Top			-25~+80			°C
Storage temperature range			Tstg			-30~+85			°C
Peak pulsing current(1/8 duty f=1KHz)			Ifp			100			mA
Junction Temperature			Tj			115			℃/W
Electrostatic Discharge(HBM)			ESD			1000			V
Electro-Optical characteristics (TA=25°C)
Parameter	Test Condition	Symbol		Color	Value					Unit
					Min		Typ	Max
Color Temperature	IF=60mA	CCT		G	--		--	--		K
Forward voltage	IF=60mA	Vf		G	3.0		--	3.4		V
luminous flux	IF=60mA	φ		G	15		--	20		LM
Viewing angle at 50% IV	IF=60mA	2θ1/2		G	--		120	--		Deg
Dominant wavelength	IF=60mA	λd		--	520		--	525		nm
Reverse current	Vr=5V	Ir		G	--		5	--		μA
Color Rendering Index	IF=60mA	CRI		--	--		--	--		Ra

Reel Dimensions:

Carrier Tape Dimensions:

Loaded quantity 1000 PCS Per reel.

Please read the following notes before using the product:

1. Over-current-proof

Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change (Burn out will happen).

2. Storage

2.1 Do not open moisture proof bag before the products are ready to use.

2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less.

2.3 The LEDs should be used within a year.

2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less.

2.5 The LEDs should be used within 168 hours (7 days) after opening the package.

2.6 If the moisture adsorbent material (silica gel) has fabled away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment: 60±5℃ for 24 hours.

3. Soldering Condition

3.1 Pb-free solder temperature profile.

3.2 Reflow soldering should not be done more than two times.

3.3 When soldering, do not put stress on the LEDs during heating.

3.4 After soldering, do not warp the circuit board.

4. Soldering Iron

Each terminal is to go to the tip of soldering iron temperature less than 260℃ for 5 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.

5. Repairing

Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.
