60 MA Epistar SMD 5630 LED Chip Pure White 200 - 220 Lm / W With 4 Pins

Detailed Product Description

High efficiency 200-220lm/W 60mA Epistar chip 0.5W 5630 SMD LED 6000K Datasheet with 4-pins

Specification

• Features:
  1. Package in 8mm tape on 7″ diameter reel.
  2. Compatible with automatic placement equipment.
  3. Compatible with infrared and vapor phase reflow solder process.

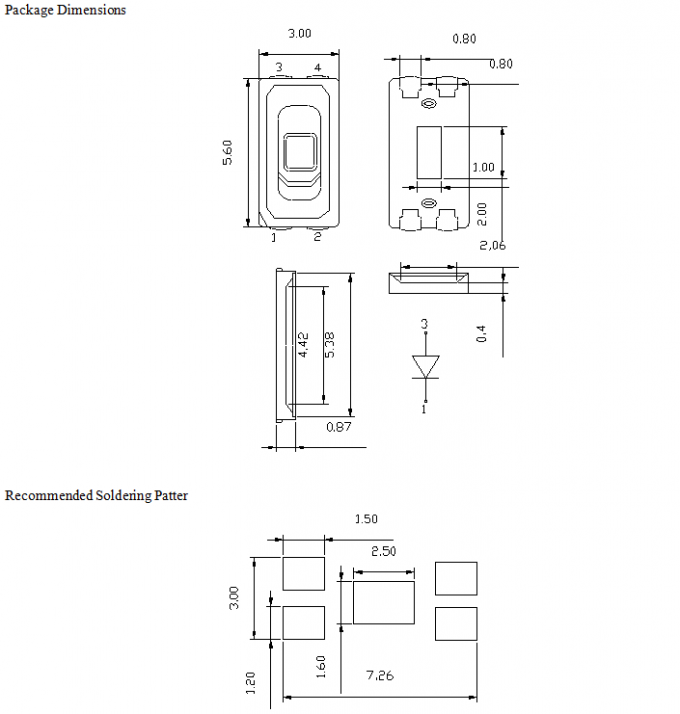

  4. 5.6mm×3.0mm SMT LED, 0.9mm thickness.
  5. Low power consumption.
  6. Color: Pure white
  7. Bi-color type.
  8. The product itself will remain within RoHS compliant Version.

  Descriptions:
  1. The PCB 5630 4-pins SMD Taping is much smaller than lead frame type components, thus enable smaller higher packing density, reduced storage space and finally smaller equipment to be obtained.
  2. Besides, light Weight makes them ideal for miniature applications, etc.

  Applications:
  1. Automotive: Decorative lights
  2. Telecommunication: Indicator and backlighting in telephone and fax.
  3. Flat backlight for LCD, switch and symbol.

•



  Product Name	SMD 5630 LED	Viewing Angle	120°
  Model No.	YH5630W02	Power	0.2W
  Voltage	3.0-3.4V	Current	60mA
  Chip Brand	Sanan	Chip Size	5.6*3.0*0.9mm
  CCT	6000-6500K	Lumens	200-220LM/W
  Color	White	Packaging	3000pcs/reel
  Lifespan	50,000 Hours	Waranty	2 Years
  1. Low power consumption 2. Long life-solid state reliability 3. Available on tape and reel 4. ROHS compliant 5. Wide Viewing Angle

Reel Dimensions:

Carrier Tape Dimensions:

Loaded quantity 3000 PCS Per reel.

Please read the following notes before using the product:

1. Over-current-proof

Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change (Burn out will happen).

2. Storage

2.1 Do not open moisture proof bag before the products are ready to use.

2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less.

2.3 The LEDs should be used within a year.

2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less.

2.5 The LEDs should be used within 168 hours (7 days) after opening the package.

2.6 If the moisture adsorbent material (silica gel) has fabled away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment: 60±5℃ for 24 hours.

3. Soldering Condition

3.1 Pb-free solder temperature profile.

3.2 Reflow soldering should not be done more than two times.

3.3 When soldering, do not put stress on the LEDs during heating.

3.4 After soldering, do not warp the circuit board.

4. Soldering Iron

Each terminal is to go to the tip of soldering iron temperature less than 260℃ for 5 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.

5. Repairing

Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.
