High Bright Led Rgb Smd 3 In 1 , 3535 Rgb Led Specifications Long Lifespan

Product Details:
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH3535RGB1.5W
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description

Type:	smd led	Chip Material:	InGaN
Emitting Color:	RGB	Luminous Intensity:	Customers' Requirements
Luminous Flux(lm):	High Bright	Power:	1.5W
Viewing Angle(°):	120 Degree	Color Rendering Index:	Null
Color Temperature:	R:620NM G:520NM B:465NM	Operating Temperature:	-20 - 85
Chip Brand:	Epistar Chip, Sanan Chip,Epileds Chip	Current:	450mA
Voltage:	R:2.0-2.4V G/B:3.0-3.4V	Warranty:	2 Years
Lifespan:	50000-100000H

High Power 1.5W RGB LED Chip Taiwan Epileds Epistar 5050 RGB SMD Led with LM80/ROHS certification

Features:
Very long operating life (up to100k hours).
Three chips (color) in one package.
Independent control of each color.
More energy efficient than incandescent and most halogen lamps.
Low voltage operated.
Instant light.
Long operating life.
IR reflow process compatible.
The product itself will remain within RoHS compliant Version.
Descriptions:
YH3535RGB1.5W is one of the highest flux LEDs in the world. It is designed to satisfy applications of Solid-State lighting. It is designed to have three chips in one package. It has various colors for choice and can be independently controlled. More important, it can be pass reflow process.
Applications:
Automotive: Backlight in dashboards and switches.
Telecommunication: Indicator and backlight in telephone and fax.
Indicator and backlight for audio and video equipment.
Indicator and backlight in office and family equipment.
Flat backlight for LCD’s, switches and symbols.
Light pipe application.
General use.

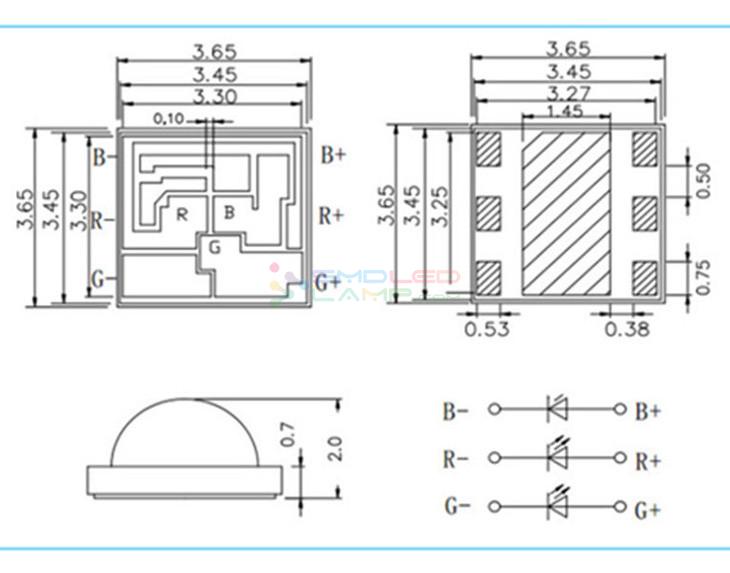

High Power RGB SMD LEDs Mechanical Dimensions:
Part No. Chip Material Source Color
YH-3535RGB1.5W R AlGaInP Ultra Red
G InGaN Pure Green
B InGaN Blue

SURFACE MOUNT LED LAMPS
Product Type:YH3535RGB1.5W
Absolute maximum ratings (Ta=25°C)
Parameter			Symbol			Value			Unit
Forward current			If			450			mA
Reverse voltage			Vr			5			V
Power dissipation			Pd			1.2			W
Operating temperature range			Top			-25~+80			°C
Storage temperature range			Tstg			-30~+85			°C
Peak pulsing current(1/8 duty f=1KHz)			Ifp			480			mA
Junction Temperature			Tj			115			℃/W
Electrostatic Discharge(HBM)			ESD			1000			V
Electro-Optical characteristics (TA=25°C)
Parameter	Test Condition	Symbol		Color	Value					Unit
					Min		Typ	Max
Color Temperature	I_F=150mA	CCT		R G B	--		--	--		K
Forward voltage	I_F=150mA	Vf		R G B	2.0 3.0 3.0		--	2.4 3.4 3.6		V
luminous flux	I_F=150mA	φ		R G B	15 30 8		--	20 40 10		LM
Viewing angle at 50% IV	I_F=150mA	2θ1/2		R G B	--		120	--		Deg
Dominant wavelength	I_F=150mA	λd		R G B	620 520 460		--	630 525 465		nm
Reverse current	Vr=5V	Ir		R G B	--		5	--		μA
Color Rendering Index	I_F=150mA	CRI		--	--		--	--		Ra

Application field
Are widely used in the LED lamp, LED bulb light, LED panel light, LED ceiling lamp, LED street light, LED lamp, miner's lamp, stage light, flashlight, lighting, lamp lighting lamps and lanterns, as well as outdoor billboards, such as electronic display, traffic lights, signs, car tail lights, LED modules, LCD back light, LED lighting lighting, LED soft/hard light bar, etc., is the better choice to replace traditional lighting light source.
