Datasheet LED SMD 3528 Deep Red 650 - 665 Nm Chip Apply To Plant Grow Lighting

Product Details:
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH3528R660
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description

Type:	smd led	Chip Material:	InGaN
Emitting Color:	Plant Red	Luminous Intensity:	Customers' Requirements
Luminous Flux(lm):	200-300mcd	Power:	0.06W
Viewing Angle(°):	120 Degree	Color Rendering Index:	Null
Color Temperature:	660NM	Operating Temperature:	-20 - 85
Chip Brand:	Epistar Chip, Sanan Chip,Epileds Chip	Current:	20 MA
Voltage:	2.0-2.4V	Warranty:	2 Years
Lifespan:	50000-100000H

Datasheet PLCC-2 Diode Deep Red 650nm-665nm Chip 0.06W SMD 3528 LED 660nm for Plant Grow Lighting

Features:
1. P-LCC-2 package.
2. White package.
3. Optical indicator.
4. Colorless clear window.
5. Ideal for backlight and light pipe application.
6. Inter reflector.
7. Wide viewing angle.
8. Suitable for automatic placement equipment.
9. Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
10. Available on tape and reel (8mm Tape).
11. The product itself will remain within RoHS compliant Version.
Descriptions:
1. The YH3528R660 is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.
Applications:
1. Automotive: Backlighting in dashboards and switches.
2. Telecommunication: Indicator and backlight in telephone and fax
3. Indicator and backlight for audio and video equipment.
4. Indicator and backlight in office and family equipment.
5. Flat backlight for LCD’s, switches and symbols.
6. Light pipe application.
7. General use

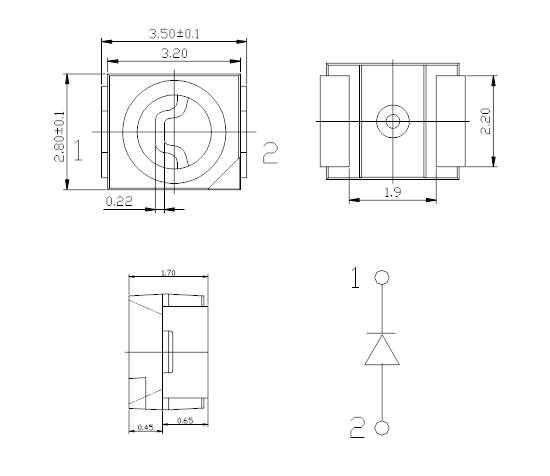

Package Dimension:

Part No. Chip Material Lens Color Source Color
YH3528R660 AlGaInP Water Clear Plant Red

Our advantages

Datasheet LED SMD 3528 Deep Red 650 - 665 Nm Chip Apply To Plant Grow Lighting

Product Description

Datasheet LED SMD 3528 Deep Red 650 - 665 Nm Chip Apply To Plant Grow Lighting

Recommended Soldering Patter:

Product quality:

1.good raw materials
2. Copper layer
3. Gold wire connection

4.Sanan chips
5. Lifespan is >50 000 hours easily

SURFACE MOUNT LED LAMPS
Product Type:YH3528B
Absolute maximum ratings (Ta=25°C)
Parameter			Symbol			Value		Unit
Forward current			If			20		mA
Reverse voltage			Vr			5		V
Power dissipation			Pd			0.06		W
Operating temperature range			Top			-25~+80		°C
Storage temperature range			Tstg			-30~+85		°C
Peak pulsing current (1/8 duty f=1KHz)			Ifp			30		mA
Electro-Optical characteristics (TA=25°C)
Parameter	Test Condition	Symbol		Value					Unit
				Min	Typ		Max
Wavelength	If=20mA	WL		640	---		650		NM
Forward voltage	If=20mA	Vf		2.0	--		2.4		V
luminous flux	If=20mA	φ		200	--		300		MCD
Viewing angle at 50% IV	If=20mA	2θ1/2		--	120		--		Deg
Color rendering index	If=20mA	CRI		--	--		--		Ra
Reverse current	Vr=5V	Ir		--	5		--		μA

Reel Dimensions:

Carrier Tape Dimensions:
Loaded quantity 2000 PCS Per reel.

Application field

Are widely used in the LED lamp, LED bulb light, LED panel light, LED ceiling lamp, LED street light, LED lamp, miner's lamp, stage light, flashlight, lighting, lamp lighting lamps and lanterns, as well as outdoor billboards, such as electronic display, traffic lights, signs, car tail lights, LED modules, LCD back light, LED lighting lighting, LED soft/hard light bar, etc., is the better choice to replace traditional lighting light source.
