5074 Szie 3 W 2V White SMD Led , Diodo Led Smd 620 - 630 NM Color Temperature

Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH5074R3W
Minimum Order Quantity: 1.6K
Price: Please inquiry
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description

Type:	smd led	Chip Material:	InGaN
Emitting Color:	Red	Luminous Intensity:	Customers' Requirements
Luminous Flux(lm):	60-80LM	Power:	3W
Viewing Angle(°):	120 Degree	Color Rendering Index:	Null
Color Temperature:	620-630NM	Operating Temperature:	-20 - 85
Chip Brand:	Epistar Chip, Sanan Chip,Epileds Chip	Current:	700mA
Voltage:	2.0-2.6V	Warranty:	2 Years
Lifespan:	50000-100000H

5074 Szie 3W 2V Red High Power White SMD LED Light Emitting Diode LED

Features:

Small package with high efficiency
Long operating life.
Available in white, green, blue, red, yellow, Amber
Typical color Wavelength: 620-630nm
View angle: 120°.
Low voltage DC operated.
The product itself will remain within RoHS compliant Version.
ESD protection.

Descriptions:

The smd 5074 led series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.
Packaging Details: 800pcs/Reel our product package size is 25x23CM, and is the use of aluminum vacuum packaging. And different types of containers, small cartons can be installed about 100K products. Large box can hold about 500K.

Applications:

Reading lights (car, bus, aircraft).
Portable (flashlight, bicycle).
Mini_accent/Uplighters/Downlighters/Orientation.
Bollards/Security/Garden.
Cove/Undershelf/Task.
Automotive rear combination lamps.
Traffic signaling/Beacons/ Rail crossing and Wayside.
Indoor/Outdoor Commercial and Residential Architectural.
Edge_lit signs (Exit, point of sale).
LCD Backlights/Light Guides.

Descriptions:

Applications:

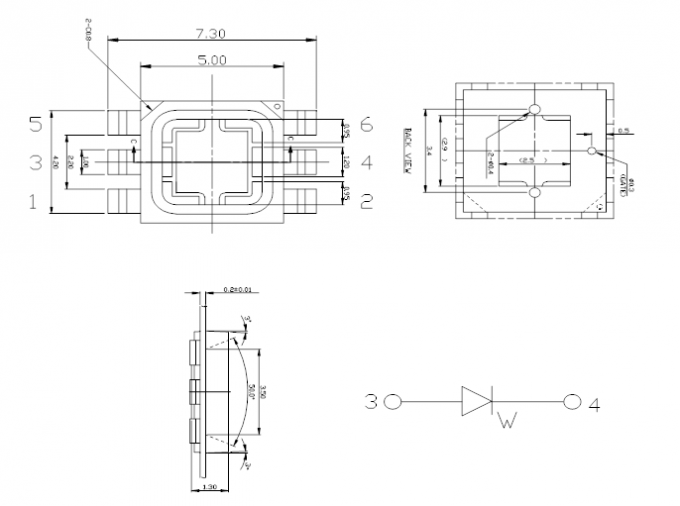

Package Dimensions

Recommended Soldering Patter

SURFACE MOUNT LED LAMPS
Product Type:YH5074R3W
Absolute maximum ratings (Ta=25°C)
Parameter			Symbol			Value			Unit
Forward current			If			700			mA
Reverse voltage			Vr			5			V
Power dissipation			Pd			3			W
Operating temperature range			Top			-25~+80			°C
Storage temperature range			Tstg			-30~+85			°C
Peak pulsing current(1/8 duty f=1KHz)			Ifp			800			mA
Junction Temperature			Tj			115			℃/W
Electrostatic Discharge(HBM)			ESD			1000			V
Electro-Optical characteristics (TA=25°C)
Parameter	Test Condition	Symbol		Color	Value					Unit
					Min		Typ	Max
Color Temperature	I_F=700mA	CCT		R	--		--	--		K
Forward voltage	I_F=700mA	Vf		R	2.0		--	2.6		V
luminous flux	I_F=700mA	φ		R	60		--	80		LM
Viewing angle at 50% IV	I_F=700mA	2θ1/2		R	--		120	--		Deg
Dominant wavelength	I_F=700mA	λd		R	620		--	630		nm
Reverse current	Vr=5V	Ir		R	--		5	--		μA
Color Rendering Index	I_F=700mA	CRI		R	--		--	--		Ra

We provide EMS DHL UPS FedEx TNT that several different types of express allows you to select, under normal circumstances, the transport time is in 5 to 10 days or so, if large cargo, go shipping, so time is longer, but safer, and the freight is lower.

Application field

Are widely used in the LED lamp, LED bulb light, LED panel light, LED ceiling lamp, LED street light, LED lamp, miner's lamp, stage light, flashlight, lighting, lamp lighting lamps and lanterns, as well as outdoor billboards, such as electronic display, traffic lights, signs, car tail lights, LED modules, LCD back light, LED lighting lighting, LED soft/hard light bar, etc., is the better choice to replace traditional lighting light source.
