Product Details:
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH5050RGB06
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days
Detailed Product Description
Type: | smd led | Chip Material: | InGaN |
---|---|---|---|
Emitting Color: | RGB | Luminous Intensity: | Customers' Requirements |
Luminous Flux(lm): | High Brightness | Power: | 0.6W |
Viewing Angle(°): | 120 Degree | Color Rendering Index: | Null |
Color Temperature: | R:620-625NM G:520-525NM B:465-470NM | Operating Temperature: | -20 - 85 |
Chip Brand: | Epistar Chip, Sanan Chip,Epileds Chip | Current: | 180mA |
Voltage: | R:2.0-2.4V G/B:3.0-3.4V | Warranty: | 2 Years |
Lifespan: | 50000-100000H |

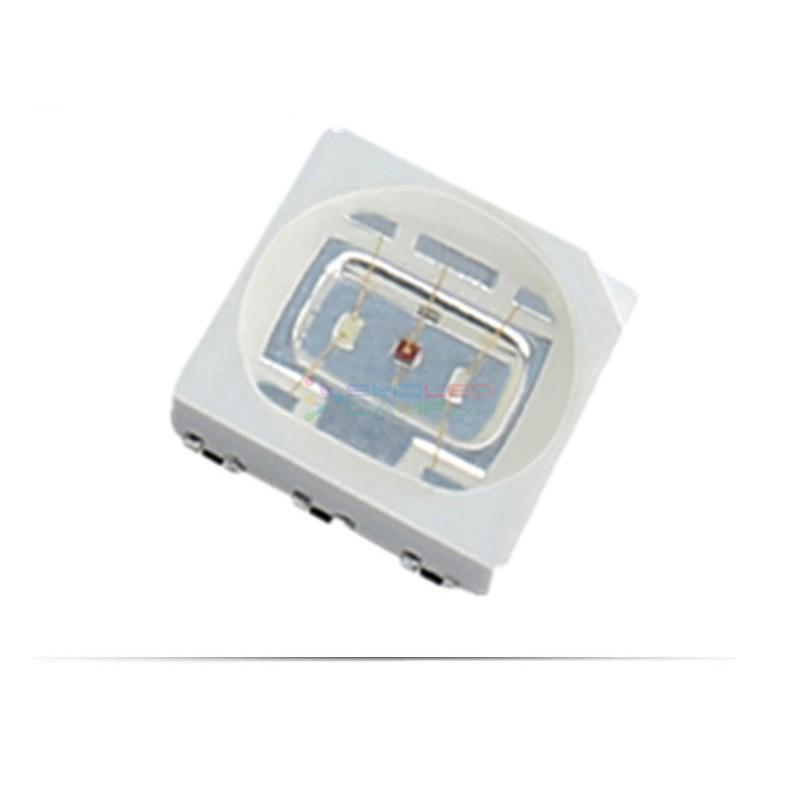

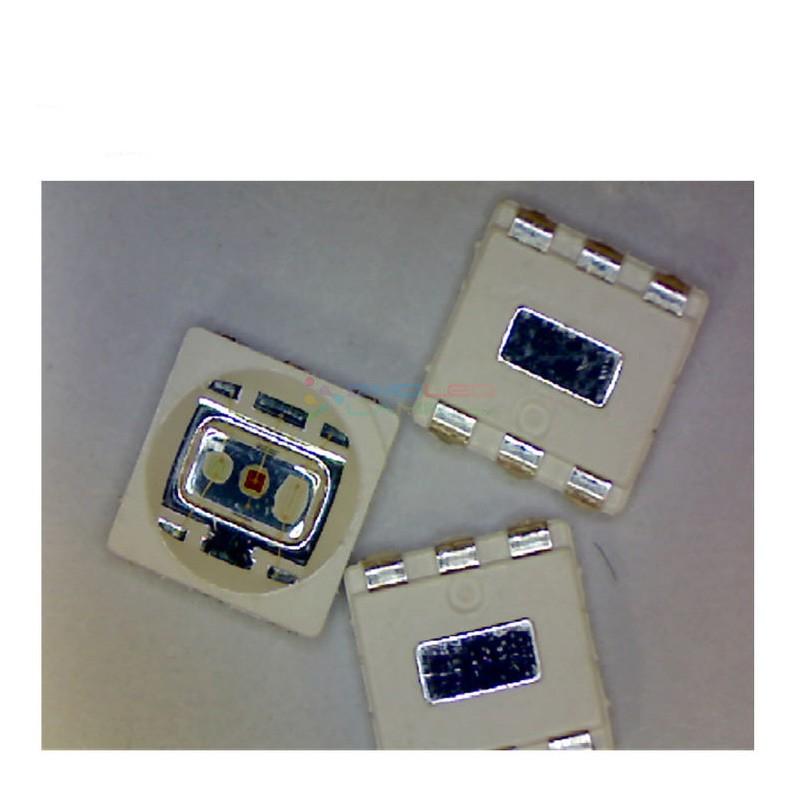

High Bright Full Color 3-chips SMD5050 Diode SMD LED RGB 5050 0.6W for LED strip light, bulb lamp
Features:
P-LCC-6 package.
White package.
Optical indicator.
Colorless clear window.
Ideal for backlight and light pipe application.
Inter reflector.
Low current (2mA) operation.
Wide viewing angle.
Suitable for vapor-phase reflow, infrared reflow and wave solder processes.
Computable with automatic placement equipment.
Available on tape and reel (12mm Tape).
The product itself will remain within RoHS compliant Version.
Descriptions:
The YH5050RGB06 is available in soft red, orange, yellow, green, blue and white. Due to the Package design, the LED has wide viewing angle and optimized light coupling by inter reflector, this feature makes the SMT TOP LED ideal for light pipe Application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.
Applications:
Automotive: Backlight in dashboards and switches.
Telecommunication: Indicator and backlight in telephone and fax.
Indicator and backlight for audio and video equipment.
Indicator and backlight in office and family equipment.
Flat backlight for LCD’s, switches and symbols.
Light pipe application.
General use.
Package Dimension:
Recommended Soldering Patter:
SURFACE MOUNT LED LAMPS | ||||||||||
Product Type:YHRGB5050-0.6W | ||||||||||
Absolute maximum ratings (Ta=25°C) | ||||||||||
Parameter | Symbol | Value | Unit | |||||||
Forward current | If | 180 | mA | |||||||
Reverse voltage | Vr | 5 | V | |||||||
Power dissipation | Pd | 450 | mW | |||||||
Operating temperature range | Top | -25~+80 | °C | |||||||
Storage temperature range | Tstg | -30~+85 | °C | |||||||
Peak pulsing current(1/8 duty f=1KHz) | Ifp | 220 | mA | |||||||
Junction Temperature | Tj | 115 | ℃/W | |||||||
Electrostatic Discharge(HBM) | ESD | 1000 | V | |||||||
Electro-Optical characteristics (TA=25°C) | ||||||||||
| Test | | | Value | Unit | |||||
Min | Typ | Max | ||||||||
| IF=60mA | CCT | R | -- | -- | -- | K | |||
| IF=60mA | Vf | R | 2.0 | -- | 2.4 | V | |||
| IF=60mA | φ | R | 5 | -- | 8 | LM | |||
| IF=60mA | 2θ1/2 | R | -- | 120 | -- | Deg | |||
| IF=60mA | λd | R | 620 | -- | 630 | nm | |||
| Vr=5V | Ir | R | -- | 5 | -- | μA | |||
| IF=60mA | CRI | -- | -- | -- | -- | Ra |
