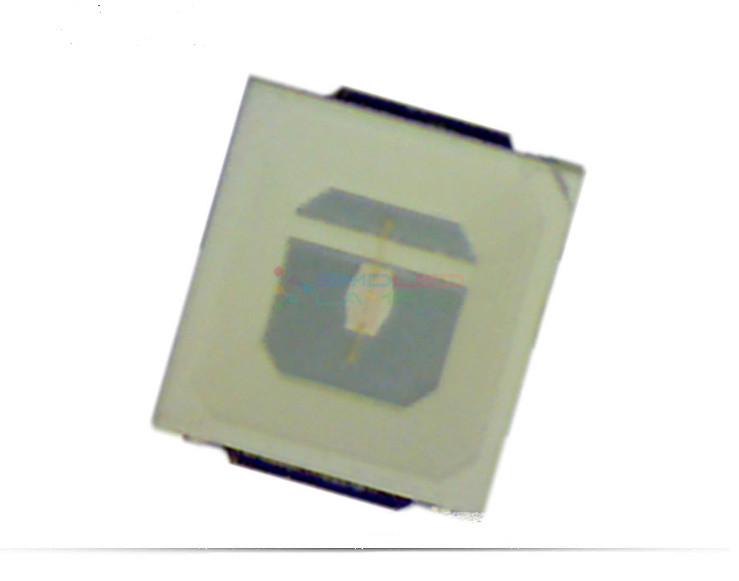

Grow Lighting SMD 5054 LED , Epileds Smd Led 0.5 W Deep Red 640 - 450 Nm

Product Details:
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH5054DR05
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description

Type:	smd led	Chip Material:	InGaN
Emitting Color:	Deep Red	Luminous Intensity:	Customers' Requirements
Luminous Flux(lm):	5-8LM	Power:	0.5W
Viewing Angle(°):	120 Degree	Color Rendering Index:	Null
Color Temperature:	660nm	Operating Temperature:	-20 - 85
Chip Brand:	Epistar Chip, Sanan Chip,Epileds Chip	Current:	150mA
Voltage:	2.0-2.4V	Warranty:	2 Years
Lifespan:	50000-100000H

Grow Lighting Epileds Chip 0.5W Deep Red 660nm SMD 5054 LED 640 - 450nm

Features:
PLCC-2 package.
White package.
Optical indicator.
Colorless clear window.
Ideal for backlight and light pipe application.
Inter reflector.
Low current (2mA) operation.
Wide viewing angle.
Suitable for vapor-phase reflow, infrared reflow and wave solder processes.
Computable with automatic placement equipment.
Available on tape and reel (12mm Tape).
The product itself will remain within RoHS compliant Version.

Descriptions:

The 0.5W 5054 is available in soft red, orange, yellow, green, blue and white. Due to the Package design, the LED has wide viewing angle and optimized light coupling by inter reflector, this feature makes the SMT TOP LED ideal for light pipe Application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.

Applications:

Automotive: Backlight in dashboards and switches.
Telecommunication: Indicator and backlight in telephone and fax.
Indicator and backlight for audio and video equipment.
Indicator and backlight in office and family equipment.
Flat backlight for LCD’s, switches and symbols.
Light pipe application.
General use.

Package Dimensions

Recommended Soldering Patter

SURFACE MOUNT LED LAMPS
Product Type:YH5054DR05
Absolute maximum ratings (Ta=25°C)
Parameter			Symbol			Value			Unit
Forward current			If			150			mA
Reverse voltage			Vr			--			V
Power dissipation			Pd			450			MW
Operating temperature range			Top			-25~+80			°C
Storage temperature range			Tstg			-30~+85			°C
Peak pulsing current(1/8 duty f=1KHz)			Ifp			200			mA
Junction Temperature			Tj			115			℃/W
Electrostatic Discharge(HBM)			ESD			1000			V
Electro-Optical characteristics (TA=25°C)
Parameter	Test Condition	Symbol		Color	Value					Unit
					Min		Typ	Max
Color Temperature	IF=150mA	CCT		DR	--		--	--		K
Forward voltage	IF=150mA	Vf		DR	2.0		--	2.6		V
luminous flux	IF=150mA	φ		DR	5		--	8		LM
Viewing angle at 50% IV	IF=150mA	2θ1/2		DR	--		120	--		Deg
Dominant wavelength	IF=150mA	λd		DR	640		--	650		nm
Reverse current	Vr=5V	Ir		DR	--		--	--		μA
Color Rendering Index	IF=150mA	CRI		DR	--		--	--		Ra

Reel Dimensions:

Carrier Tape Dimensions:
Loaded quantity 1000 PCS Per reel.

Grow Lighting SMD 5054 LED , Epileds Smd Led 0.5 W Deep Red 640 - 450 Nm

Application field

Are widely used in the LED lamp, LED bulb light, LED panel light, LED ceiling lamp, LED street light, LED lamp, miner's lamp, stage light, flashlight, lighting, lamp lighting lamps and lanterns, as well as outdoor billboards, such as electronic display, traffic lights, signs, car tail lights, LED modules, LCD back light, LED lighting lighting, LED soft/hard light bar, etc., is the better choice to replace traditional lighting light source.
