Emerald Green 1w Led Chip , Smd Chip Led Lamp 120 Degree Viewing Angle

Product Details:
Place of Origin: SHENZHEN
Brand Name: Yuhang
Certification: CE.SGS.ROHS
Model Number: YH3030G1
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 8KK/Days

Detailed Product Description

Type:	smd led	Chip Material:	InGaN
Emitting Color:	Green	Luminous Intensity:	Customers' Requirements
Luminous Flux(lm):	60-70LM	Power:	1W
Viewing Angle(°):	120 Degree	Color Rendering Index:	20
Color Temperature:	520-525NM	Operating Temperature:	-20 - 85
Chip Brand:	Epistar Chip, Sanan Chip,Epileds Chip	Current:	300mA
Voltage:	3.0-3.6V	Warranty:	2 Years
Lifespan:	50000-100000Hours

Smd 3030 led 1w green 520-525nm emerald-green 1w led chip for led night light

This is our 0.65mm Height PLCC-2 Package Top View 3030 LED grow lights components, the YH3030B2 series is available in soft red, orange, yellow, green, blue and white. The LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.

Our led grow light mainly are red and blue spectrum, these two spectrums are the peak of plants absorption.

Features:

PLCC-2 package.
High power LED type.
White package.
Optical indicator.
Colorless clear window.
Ideal for backlight and light pipe application.
Inter reflector.
Wide viewing angle.
Very long operating life.
Instant light (less than 100 ns).
Reading lights (car, bus, aircraft).
Mini_ accent/Up lighters/Down lighters/Orientation.
Bollards/Security/Garden.
Cove/Under shelf/Task.
Automotive rear combination lamps.
Indoor/Outdoor Commercial and Residential Architectural.
Edge_ lit signs (Exit, point of sale).
LCD Backlights/Light Guides.
Designed for high current operation.
Low thermal resistance.
Suitable for automatic placement equipment.
Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
The product itself will remain within RoHS compliant Version.

Applications:

Horticultural operations
Commercial vegetable and flower production
Supplemental greenhouse lighting
Hydroponics
Research experiment

Notes:

All dimensions are in millimeters.
Tolerance is ± 0.10mm (.004″) unless otherwise noted.

Specifications are subject to change without notice.

Part No.	Chip Material	Lens Color	Source Color
YH3030G1	AlGaInP	Water Clear	Emerald-green

Product Description

Package Dimensions

Emerald Green 1w Led Chip , Smd Chip Led Lamp 120 Degree Viewing Angle

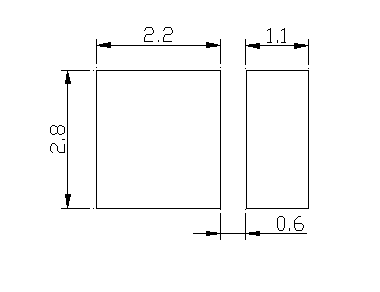

Recommended Soldering Patter

SURFACE MOUNT LED LAMPS
Product Type:YH3030G1
Absolute maximum ratings (Ta=25°C)
Parameter			Symbol			Value			Unit
Forward current			If			300			mA
Reverse voltage			Vr			--			V
Power dissipation			Pd			950			MW
Operating temperature range			Top			-25~+80			°C
Storage temperature range			Tstg			-30~+85			°C
Peak pulsing current(1/8 duty f=1KHz)			Ifp			400			mA
Junction Temperature			Tj			115			℃/W
Electrostatic Discharge(HBM)			ESD			1000			V
Electro-Optical characteristics (TA=25°C)
Parameter	Test Condition	Symbol		Color	Value					Unit
					Min		Typ	Max
Color Temperature	IF=300mA	CCT		G	--		--	--		K
Forward voltage	IF=300mA	Vf		G	3.2		--	3.6		V
luminous flux	IF=300mA	φ		G	60		--	70		LM
Viewing angle at 50% IV	IF=300mA	2θ1/2		G	--		120	--		Deg
Dominant wavelength	IF=300mA	λd		--	520		--	525		nm
Reverse current	Vr=5V	Ir		G	--		--	--		μA
Color Rendering Index	IF=300mA	CRI		--	--		--	--		Ra

Reel Dimensions:

Carrier Tape Dimensions:
Loaded quantity 5000 PCS Per reel.

Emerald Green 1w Led Chip , Smd Chip Led Lamp 120 Degree Viewing Angle

Application field

Are widely used in the LED lamp, LED bulb light, LED panel light, LED ceiling lamp, LED street light, LED lamp, miner's lamp, stage light, flashlight, lighting, lamp lighting lamps and lanterns, as well as outdoor billboards, such as electronic display, traffic lights, signs, car tail lights, LED modules, LCD back light, LED lighting lighting, LED soft/hard light bar, etc., is the better choice to replace traditional lighting light source.
